數位式照膠系統 ( Gel Documentation ) - Compact Digimage System
Code  NZ0040-0010
Classification  數位式照膠系統
Size
Order 加入購物車
Print
PRODUCT DETAIL

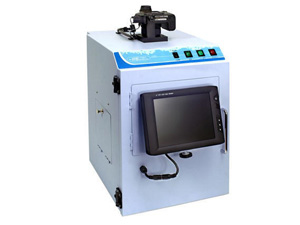

Compact Digimage System uses a digital camera with 12.1 mega pixel resolution. It is computer free for compact space requirements and small budget. One integrated chamber with a build-in UV transilluminator and viewing images from the large 8" TFT color liquid crystal display are its specific features. Another feature of the Compact Digimage System is the new design of convenient accesses on two sides of the chamber making it easy and safe to recover the agarose gel for further experiments. The system is suitable to capture image for fluorescent gels, colorimetric gels, auto radiography film, and blotting membrane and others. In addition, several analysis software packages are can be used after capturing images from Compact Digimage system.


Features
  • Great observation from front view window and TFT screen
  • Convenient accesses on two sides for gel operation
  • User Friendly
  • Compact configuration and size
  • Complete package
  • 12.1 Megapixels digital camera
  • Autofocus
  • Multi focus area selection
  • 8" TFT liquid crystal screen
  • High resolution screen
  • Safety door switch
  • Multi power source
  • Video and Audio ports

Specification
UV Transilluminator:
  • Wavelength: 254 / 312 / 365nm
  • Filter Size: 21 x 21cm
  • Light Source: 8W x 6 tubes
  • Long life filter
  • High efficiency reflector
  • High / Low intensity switch
  • Fast Lighting Up: new and high quality starter to let the tubes lighting up at once when switch on and no blink
 Chamber:
  • Multi-power Source: For camera, inner light lamp, TFT screen
  • Inner White Lamp: 2 tubes
  • Safety Door Switch: automatically shut down UV transilluminator while opening operation door
  • Chamber Dimension: 290 x 220 x 320mm (W x D x H)
  • Chamber Construction Material: Painted metal
  • Rated Voltages: 110V or 220V
  • Unit Weight: 20.0 kg



8''TFT Screen:
  • 8" TFT liquid crystal screen
  • Resolution: 800 x 600 Pixels
  • Brightness: 400cd/m2
  • Contrast Ratio: 300:1
  • Display mode: NTSC/PAL/SECAM mode auto switching
  • Video and audio input
 Camera:
  • Type of Camera: 6 x Optical/4 x Digital
  • Effective Pixels: Approx. 12.1 Megapixels
  • CCD: 1/1.7" high-density CCD; total pixels 12.4 million
  • Maximum Aperture: f/2.8 (W) - f/4.8 (T)
  • Shutter Speed: 15-1/2500 sec. (settable in TV and M)
  • Storage Media: memory card
  • Computer Interface: USB 2.0 Hi-Speed (mini-B jack)
  • Video Out: NTSC/PAL

Ordering Information

Cat. No.

Descriptaion

UVDI-254-110/220

MS Compact Digimage System, Including:

12.1 Megapixel digital camera, camera DC coupler, lens adaptor, 8''TFT colorful screen, chamber, 254 nm UV transilluminator, 1GB memory card, memory card reader, 1 Close up lens, and either a EtBR filter or a SYBR Green filter

UVDI-312-110/220

MS Compact Digimage System, Including:

12.1 Megapixel digital camera, camera DC coupler, lens adaptor, 8''TFT colorful screen, chamber, 312 nm UV transilluminator, 1GB memory card, memory card reader, 1 Close up lens, and either a EtBR filter or a SYBR Green filter

UVDI-365-110/220

MS Compact Digimage System, Including:

12.1 Megapixel digital camera, camera DC coupler, lens adaptor, 8''TFT colorful screen, chamber, 365 nm UV transilluminator, 1GB memory card, memory card reader, 1 Close up lens, and either a EtBR filter or a SYBR Green filter

UVDI-CB-254-110/220

Including camera adaptor, 8''TFT colorful screen, chamber, 1 Close up lens, 254 nm UV transilluminator and either a EtBR filter or a SYBR Green filter

UVDI-CB-312-110/220

Including camera adaptor, 8''TFT colorful screen, chamber, 1 Close up lens, 312 nm UV transilluminator and either a EtBR filter or a SYBR Green filter

UVDI-CB-365-110/220

Including camera adaptor, 8''TFT colorful screen, chamber, 1 Close up lens, 365 nm UV transilluminator and either a EtBR filter or a SYBR Green filter

UVDI-CB-254&365-110/220

Including camera adaptor, 8''TFT colorful screen, chamber, 1 Close up lens, 254 & 365 nm UV transilluminator and either a EtBR filter or a SYBR Green filter

DI-CLEB

Close up lens and EtBR filter

DI-CL

Close up lens

DI-EB

EtBR filter

DI-SG

SYBR Green filter

DI-LA

Lens adaptor
