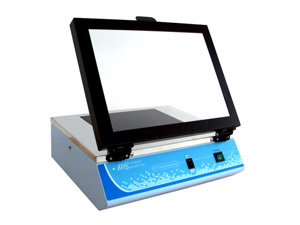

紫外光透照箱 ( UV Transilluminators ) | ![](photo/images/pro_pic/NY0020-0010.jpg) | Code | NY0020-0010 | Classification | 紫外光透照箱 | Size | | Order | ![加入購物車](images/carticon.gif) |
Print |
|
| PRODUCT DETAIL |
The bench-top UV transilluminators offer the researcher uniform and intense sources of ultraviolet light (radiation) in a compact package. Their special design emits either one or two intensity excitation UV wavelengths for back-illumination of transparent fluorescent materials. 254nm, 312nm, and 365nm modes are available. Now there are two different filter-sized modes available, 26 x 21cm and 21 x 21cm for different user requirements.
Key feature for the bench-top UV transilluminattors is they can be easily view gels under long wave for extended periods of time avoiding photo nicking damage. Short wave is used to irradiate samples. In between, medium wave is suggested for general gel operating. All Bench-top Transilluminator models are compact, lightweight and economical units. |
Features
|
- Wavelength available: 254nm or 312nm or 365nm
- View Dimension: 26 x 21cm or 21 x 21cm
- Long life time filter
|
Specification
|
- Wavelength: 254 / 312 / 365nm
- Filter Size: MUV26 series: 26 x 21cm
MUV21 series: 21 x 21cm
- Light Source: 8W x 6 tubes
- Long life filter
- High efficiency reflector
- High / Low intensity switch
- Fast Lighting Up: new and high quality starter to let the tubes lighting up at once when switch on and no blink
- UV Resistant Plastic Cover: 330 x 250 mm (W x D)
- Unit Dimension: 340 x 295 x 100 mm (W x D x H)
- Rated Voltages: 110V or 220V
- Weight: 7.5kg
|
Ordering Information
|
Cat. No. |
Description |
MUV21 series |
|
MUV21-254-110 |
21 x 21 cm UV transilluminator for 254 nm, 110V |
MUV21-254-220 |
21 x 21 cm UV transilluminator for 254 nm, 220V |
MUV21-312-110 |
21 x 21 cm UV transilluminator for 312 nm, 110V |
MUV21-312-220 |
21 x 21 cm UV transilluminator for 312 nm, 220V |
MUV21-365-110 |
21 x 21 cm UV transilluminator for 365 nm, 110V |
MUV21-365-220 |
21 x 21 cm UV transilluminator for 365 nm, 220V |
|
|
MUV26 series |
|
MUV26-254-110 |
26 x 21 cm UV transilluminator for 254 nm, 110V |
MUV26-254-220 |
26 x 21 cm UV transilluminator for 254 nm, 220V |
MUV26-312-110 |
26 x 21 cm UV transilluminator for 312 nm, 110V |
MUV26-312-220 |
26 x 21 cm UV transilluminator for 312 nm, 220V |
MUV26-365-110 |
26 x 21 cm UV transilluminator for 365 nm, 110V |
MUV261-365-220 |
26 x 21 cm UV transilluminator for 365 nm, 220V |
|
|
Accessories |
|
MUV-T254 |
8W 254 nm UV lamp |
MUV-T312 |
8W 312 nm UV lamp |
MUV-T365 |
8W 365 nm UV lamp |
MUV-F21 |
21 x 21 cm filter |
MUV-F26 |
26 x 21 cm filter |
MUV-C |
UV protected cover |
|
|
| |
