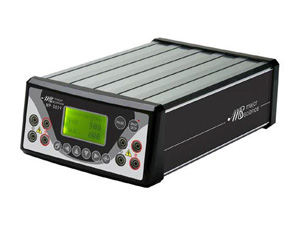

電源供應器 MS500V Power Supply
Code  NX0120-0010
Classification  電源供應器
Size
Order 加入購物車
Print
PRODUCT DETAIL
major science MP 500V (Cat. No. MP-500V) power supply is a microprocessor-controlled power supply covering a wide range used for most electrophoresis needs. MP 500V is a programmable mode, and it is capable of running horizontal & vertical electrophoresis, SDS-PAGE, native PAGE applications, two-dimensional electrophoresis, and electro-blotting. Furthermore, the powerful specifications plus four pairs of terminator can be used for multi electrophoresis units simultaneously. In addition, a Timer with alarm function is equipped in the unit, and so is Pause function. major science MP 500V power supply provides Constant Voltage or Constant Current or Constant Power used in electrophoresis. 2.6" LCD shows the running / setting condition and also provides a user friendly interface and convenience to the user. Advanced safety design concerns are outstanding features of MP 500V power supply.

Features
  • Compact size
  • Advanced power capacity: MP-500V: 300W, 800mA, 500V
  • Microprocessor controller
  • Advanced programmable capability
  • Four pairs of outlet terminator
  • LCD Display
  • Timer with alarm function
  • Advanced safety devices
  • Stackability
  • Wide applications for DNA, RNA and protein electrophoresis
  • Better design for refrigerated condition operation

Specification

Cat.No.

MP-500V

Output Voltage/Inc

5-500V /1 V

Output Current/Inc

600mA /1 mA

Output Watt/Inc

300W /1W

Operating Constants

Voltage or Current or Power

Control

Microprocessor Controller

Program Storage

30 programmed files

Program Multi-Step

Up to 6 steps

Terminator Pairs

4 pairs

LCD Display

2.6''

Timer

1~999 mins with alarm,continuous

Safety Device

No Load detect

Leakage detect

Overload detect

Load change detect

Over voltage detect

Over temperature protection

Shrouded plugs and sockets

Crossover

Yes

Operating Temperature

Ambient-40

Unit Dimension

W190 x L275 x H95mm

Construction

ABS faceplate and aluminum

Weight

2.5kg

Rate Voltages

100-240V

Stackability

Yes




Ordering Information
Catalog Number Item Description
MP-500V MS 500V Power Supply
