電源供應器 MP300V Power Supply
Code  NX0100-0010
Classification  電源供應器
Size
Order 加入購物車
Print
PRODUCT DETAIL

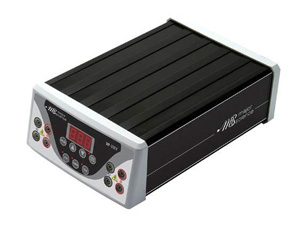

major science MP 300V (Cat. No. MP-300V) is a microprocessor-controlled power supply with full control range of designated current and/or voltage.  Its maximum voltage output is up to 300 voltage and is designed to meet most electrophoresis needs in a personal, single, easy to use unit. MP 300V power supply is capable of running horizontal & vertical electrophoresis, and two-dimensional electrophoresis, SDS-PAGE applications. In addition, a Timer with alarm function is also equipped in the unit, and so is Pause function. Furthermore, the powerful specifications plus four pairs of terminator could be used for multi electrophoresis units simultaneously. The design of stackability is another feature to save bench top space. MP300V power supply also provides Constant Voltage or Constant Current to instruments used in electrophoresis. 4 pairs of terminator and the much powerful specification equipped enable the maximum capability of MP 300 power supply series compared to other existing similar products on the market.

Features
  • Compact size
  • Advanced power capacity: 150W, 700mA, 300V
  • Microprocessor controller
  • Constant voltages and constant currents
  • Four pairs of outlet terminator
  • Timer with alarm function
  • Advanced safety devices
  • Stackability
  • Wide applications for DNA, RAN and protein electrophoresis
  • Better design for refrigerated condition operatio

Specification
Cat.No.

MP-300V

Ouput Voltage/Inc

2-300V / 1V

Ouput Current/Inc

1-700mA / 1mA

Max.Watt

150W

Operating Constants

Voltage or Current

Control

Microprocessor Controller

Terminator Pairs

4 pairs

Timer

1~999 mins with alarm,continuous

Safety Device

No Load detect

Leakage detect

Overload detect

Load change dectect

Over temperature protection

Shrouded plugs and sockets

Crossover

Yes

Operating Temperature

Ambient-40

Unit Dimension

W190 x L275 x H95mm

Construction

ABS faceplate and aluminum

Weight

2.5kg

Rated Voltages

100-240V

Stackability

Yes


Ordering Information
Catalog Number Item Description
MP-300V MS 300V Power Supply
