電源供應器 MP-100 40W‚ 100V Handy Power Supply | ![](photo/images/pro_pic/NX0060-0010.jpg) | Code | NX0060-0010 | Classification | 電源供應器 | Size | | Order | ![加入購物車](images/carticon.gif) |
Print |
|
| PRODUCT DETAIL |

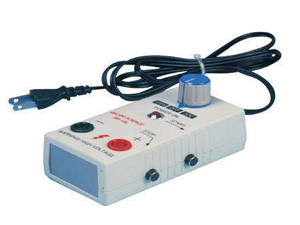

The model MP-100, Handy Power Supply is a cost competitive, compact and light-weight unit. Easy to operate, either 50 or 100 V is selectable as the output voltages are its features. These voltages are sufficient for ordinary electrophoresis of DNA and RNA.
|
Features
|
- Compact size
- Power capacity: 40W, 100V
- Two constant voltages: 50V, 100V
- No load detection
- Shrouded plugs and sockets
- Sufficient capability for horizontal electrophoresis systems
- Economic choice
- Bundled package with MJ-105-S, MJ-105-R, and MT-108
|
Specification
|
- Max voltage: 100V
- Max Watt: 40W
- Output type: constant voltage
- Voltage selection: 50V and 100V
- Safety device: No load detection; shrouded plugs and sockets
- Operating temperature: ambient - 40℃
- Unit dimension: W60 x L40 x H120 mm
- Terminator pairs: one pair
- Construction material: polycarbonate (PC)
- Weight: 0.3 kg
- Rated voltages: 100-120V only
- Very good value and very low cost
- Compact size
- Bundled with electrophoresis cell, MJ-105-S/R or MT-108
|
Ordering Information
|
Cat. No. |
Descriptaion |
MP-100 |
Handy 100V Power Supply |
Electrophoresis Package |
MJS-100P |
Package of MJ-105-S and MP-100 |
MJR-100P |
Package of MJ-105-R and MP-100 |
MT-100P |
Package of MT-108 and MP-100 |
|
|
| |
