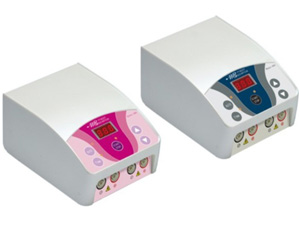

Smart / Pink Minis 300 Power Supply

major science Smart/Pink Minis 300V power supply (Cat. No. Minis 300VS/ Minis 300VP) is an further choice of Minis 150 power supply. Apart from the difference of front label color appearance, it is equipped with even higher voltage, up to 300 Voltage, sufficient for SDS-PAGE, and native PAGE applications. Similarly, the powerful specifications ensure two pairs of terminator to be used simultaneously even though Minis 300V power supply series is in the same size of Minis 150V power supply. Minis Power Supply is designed for individuals to have his/her own power supply unit plus the packages with either larger Horizontal Electrophoresis system or Vertical Electrophoresis system in laboratories to efficiently handle multiple electrophoresis gel tanks reducing interrupting others' experiments and time waiting for the instrument. The Minis power supply only uses small lab bench space at very reasonable price.

• Compact size
•
Power capacity: 300V, 400mA, 60W
• 6 constant voltages: 50V, 100V, 150V, 200V, 250V, 300V
• No Load detection
• Shrouded plugs and sockets
• Two pairs of outlet terminator
• Timer with alarm function
• Stability
• Packages with larger Horizontal Electrophoresis and Vertical Electrophoresis

• Max. Voltage: 300V
• Max. Current: 400mA
• Max. Watt: 60W
• Output Type: Constant Voltage
• Control: Microprocessor controller
• 6 Constant Voltages: 50V, 100V, 150V, 200V, 250V, 300V
• Timer: 1 ~ 999 mins with alarm, continuous
• Safety Device: No Load detection ; shrouded plugs and sockets
• Operating Temperature: Ambient to 40℃
• Unit Dimension: W115 x L150 x H80mm
• Terminator Pairs: Two pairs
• Construction Material: Frame retard ABS and aluminum rare and bottom plates
• Weight: 0.6kg
• Rated Voltages: 100-240V
• Compact Size
• Sufficient for larger Horizontal Electrophoresis systems and Vertical Electrophoresis systems

Cat. No.	Description
Minis 300VS	Smart Minis 300V Power Supply
Minis 300VP	Pink Minis 300V Power Supply

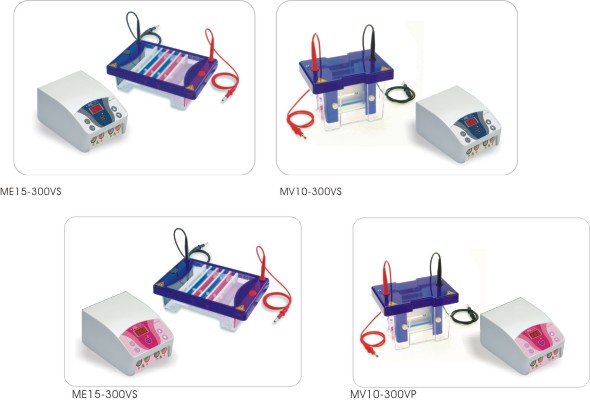

Electrophoresis Package
