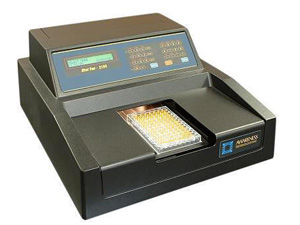

微量盤樣品測讀機 ( Microplate ELISA Reader) Stat Fax 2100 Microplate Reader Code  NW0320-2100 Classification  實驗室分析儀器設備 Size  Order  Print  PRODUCT DETAIL Microplate Reader StatFax 2100 FEATURES Fully automatic. Bichromatic optics. Standard model includes four filters, six filters are available for a nominal charge. On board data reduction calculations include regressions, curve fitting and cutoff absorbance calculations with step-by-step user prompting. Large, non-volatile memory stores at least 50 user tests. Includes parallel and serial outputs. Operates with or without a computer. A bi-directional accessory is available for linking to IBM compatible computer. OPTIONS&ACCESSORIES Four and six filter models available Optional 340nm reading capability Computer interface for IBM Serial or parallel printers Dri-Dye® check strips for verifying accuracy, linearity, and repeatability Durable carrying xase SPECIFICATIONS Photmetric Linear Measurement Range -0.20 to 3.0 Absorbance units (A) Photometric Accuracy +/- 1% or better Stability Drift of no more than 0.005A in 8 hours Light Source Tungsten lamp with lamp saver feature Wavelengths Standard: 405, 450, 492, and 630nm 6-VIS: 405, 450, 492, 545, 600, and 630nm 6-UV: 340, 405, 450, 492, 545, and 630nm FilterType Multiple cavity hard coat interference, 10nm half bandpass Vessel Standard 96-well microtiter plates, or strip trays Electronic Display Two line LCD, alpha numeric, 24 characters per line Printer Requirements Parallel or serial, 80 Column, 2K byte minimun buffer capacity, EPSON compatible Keyboard 29-key, domed membrane switch, enunciating Power Requirements 115V or 230V AC, 50-60Hz (switch selectable) Serial Port 2400 Baud, 1 start bit, 8 data, I stop, no parity Microprocessor Z80A or Z 180 Non-volatile Memory Battery supported RAM, holds approx. 50 tests and curves Certifications NRTL Listed, CE Mark Software Speed Reads, and prints absorbances of 96 wells in about two minutes Calculation Modes Single point calibration, uptake mode, point-to-point curve fit, polynomial regression, linear regression (log & linear), cutoff absorbance, multipoint % absorbance Additional Features Complete user prompting, flags and error messages, partial plate reading, alphanumeric test naming, auto- matic interpretation options, duplicate options, clock and calendar, controls locator, self check system, curve plotting and editing Other Mixer Variable time, fixed speed Enclosure Fire-retardant ABS plastic cover with metal base Dimensions Approx. 17xl4.5x7in(43x37xl8cm) weighs 30lbs. (13.7kg)
