Tissue-Tearor | ![](photo/images/pro_pic/NP0060-0010.jpg) | Code | NP0060-0010 | Classification | 均質/粉碎 | Size | | Order | ![加入購物車](images/carticon.gif) |
Print |
|
| PRODUCT DETAIL |

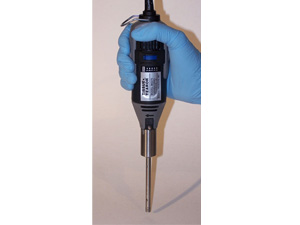

The Tissue-Tearor is a rotor/stator type tissue homogenizer which can rapidly homogenize, disrupt, and emulsify samples in 0.2 - 1000 ml of liquid. Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is usually achieved in ten to thirty seconds. Little, if any, heat is produced during the process.

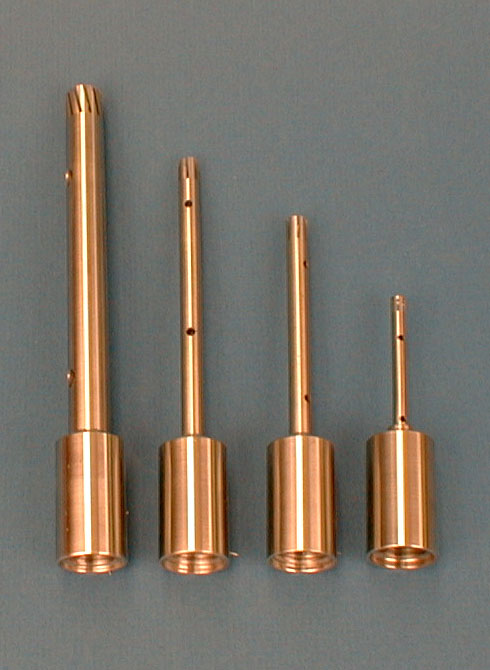

If you need 230 volt unit, please select the models that end in EUR. Four different probe sizes are avaliable - the 04, 07, XL, and 14. Unlike most other Brands of rotor-stator homogenizer, the Tissue-Tearor comes complete with high speed motor and a probe of your choice. See chart for selection guidance. |
Product Description |
During operation, the suspended material is drawn into the bottom half inch of the homogenizer probe by a rotor turning at 35,000 rpm. The material is repeatedly cycled through narrow slits in the probe where it is rapidly sheared and disintegrated by high frequency mechanical action. |
|
Catalog Number |
Practical Working Range (ml) |
Probe Diameter (mm) |
Probe Length (cm) |
985370-04 |
0.2-5.0 |
4.5 |
4.8 |
985370-07 |
0.5-50 |
7 |
8.3 |
985370-14 |
1.0-1000 |
14 |
13.2 |
985370-XL |
0.5-50 |
7 |
10.9 |
The Tissue-Tearor comes complete with a high speed, variable speed electric motor, one probe of your choice and a plastic storage stand.* All Tissue-Tearors are priced the same. Probes are interchangable with the motor. See Accessories to order additional probes alone.
* The Tissue-Tearor with the 14 mm diameter probe does not come with a plastic storage stand.
|
Features |
- Use for mixing, emulsification, shredding, or chopping.
- Practical answer for small samples.
- Easy to hold and light weight for one hand operation. Can also be stand mounted.
- Autoclavable stainless steel probes. Inert to aggressive solutions.
- All probes are interchangable and are easily removed for cleanup.
- High speed motor. Variabel speed control from 5,000 to 35,000 rpm.
|
Specifications |
- Sample Volume Range: 0.2 to 1000 ml, depending on the probe selected (see table).
- Universal Motor: 120 VAC, 138 watts or, for overseas applications, 230VAC.
- Variable Speed: 5,000 to 35,000 rpm
- Probes made of Type 316 Stainless Steel with flurocarbon bushings.
- Weight: Approximately 1/2 Kg.
|
Other Information
|
AWAY FROM ELECTIRCAL LINES? The model 780CL Cordless Tissue-Tearor includes a cordless, high speed motor, one probe of your choice, one rechargable 9.6 volt battery pack and a plug-in charger. Please indicate probe size desired from the table (example: 780CL-07). The maximum speed of the 780CL is slightly slower than the line-operated TissueTearor (25,000 vs 35,000 rpm), it is quite adequate for homogenizing soft tissue like muscle, liver, brain, etc. The price for the 780CL Tissue-Tearor is the same as the 985370 series.
To order the Cordless Tissue-Tearor, just select the 780CL series model number of your choice from the dropdown list above. |
|
| |
