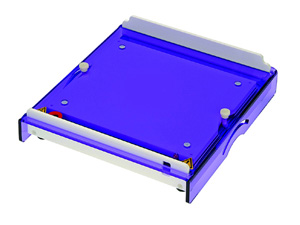

半乾式轉漬器 ( Semi - Dry Electroblotters ) | ![](photo/images/pro_pic/NM0400-0010.jpg) | Code | NM0400-0010 | Classification | 電泳相關設備 | Size | | Order | ![加入購物車](images/carticon.gif) |
Print |
|
| PRODUCT DETAIL |
Semi Dry series products offer rapid transfer times for DNA, RNA and protein blotting, typically 15 to 30 minutes. It can be used for all types of blotting, western, southern and northern via uncomplicated buffer and set up procedures and are compatible with gel thicknesses from 0.25 up to 10mm. The unit is compatible with its respective vertical electrophoresis system. It only requires very low buffer volume, typically only a few milliliters of buffer per transfer. A screw down lid secures the blot sandwich and allows complete control of pressure ensuring even transfer. The electrodes, comprising platinum coasted anode and stainless steel cathode, will exhibit practically no corrosion and so provides many years of trouble free use. Uniform heat dispersion across the blot sandwich ensures stable transfer times and no heat induced sample loss or transfer distortions. It also allows viewing of the blot sandwich to ensure correct positioning and transfer is occurring correctly. Electrode plates are fully separated to prevent arching or damage. |
Features |
-
Rapid transfer times
-
Western, southern and northern blots
-
Economic transfers due to very low buffer volumes
-
Screw down lid - gels from 0.25 up to 10 mm thick can be blotted
-
Uniform heat dispersion
-
Long life electrodes
|
Specification |
-
Gel dimension: 100 x 100 mm for MSD10 ; 200 x 200 mm for MSD20
-
Maximum sample: 1 blot, 100 x 100 mm for MSD 10 ; 1 blot, 200 x 200 mm for MSD20 ; 4 blot, 100 x 100 for MSD20
-
Unit dimension: W160 x L160 x H70 mm for MSD; W260 x L260 x H70 mm for MSD20
-
Buffer volume: 5 ml for MSD10 ; 20 ml for MSD 20
-
Glass thickness range: 0.25 mm up to 10 mm
-
Economic transfer: Yes
-
Construction: Injection molded construction, durable, leak proof environment for complete safety and long life
-
Electrical Safety: lid can be located in one way only; on removal, power is disconnected from buffer chamber
|
Ordering Information |
Cat. No. |
Descriptaion |
MSD-10 |
Semi Dry Mini, 10 x 10 cm System |
MSD-20 |
Semi Dry Maxi, 20 x 20 cm System |
|
|
| |
