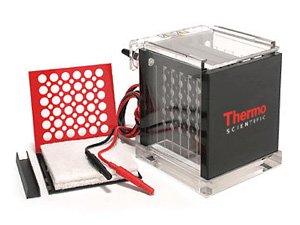

Thermo Scientific VEP-2 Mini Tank Electroblotting System
Transfer Area: (W x L) 9 x 9 cm
Footprint: (W x L x H) 13 x 18 x 16.50 cm
Buffer Vol: 1.4 L
Fast efficient transfer of proteins.

Our Owl VEP-2 Mini Tank Electroblotting System is designed to provide uniform, reproducible protein transfers over a wide molecular weight range. Tank style blotting is highly efficient. Rapid, efficient transfers of up to four polyacrylamide mini protein gels are possible simultaneously in this robust system. The integrated cooling base allows temperature controlled runs. Stir bars may be added to the bottom of the buffer chamber to allow for increased buffer circulation and heat exchange. This is the perfect addition to any protein system.

1. Stack gel and membrane between foam pads and blotting filter paper, place into the cassette and place clip onto the cassette
2. Slide the cassette into the tank
3. The tank is designed so there is no chance of setting the cassette(s) in backwards
4. If temperature regulation is required, attach tubing to the hose connectors on the back of the tank
5. The electroblotting system may be hooked up to tap water or a recirculator for cooling

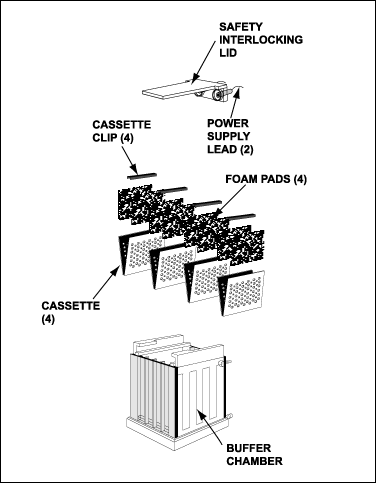

Complete System Includes:
  • Buffer Chamber with Platinum Wire Electrode Panels and Cooling Base
  • Safety Interlocking Lid with Attached Power Supply Leads
  • 4 Blotting Cassettes with Foam Pads
  • Blotting Filter Paper, 16 Sheets, (W x L) 9 x 9 cm
  • 4 Blotting Cassette Clips
