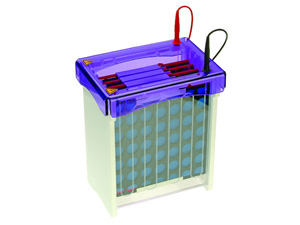

Electro Blot Mini is primarily designed for wet electroblotting of proteins, and it offers a combination of increased capacity with economy saving features. Electro Blot Mini has increased capacity over standard systems with up to five gel blot cassettes utilized at any one time. This is especially useful in high throughput laboratories. A uniform electric field is provided by a high intensity coiled electrode and ensures uniform transfer across the blot surface. The cassette's open architecture ensures the maximum blot area allows direct transfer of current. Its rigid construction ensures contact between the gel and membrane is retained throughout the blot and an even pressure is maintained. The unit is compatible with magnetic stirrers to aid heat dispersal and prevent pH drifts in the buffer due to incomplete buffer mixing. The unit includes a cooling pack to further enhance transfer efficiency by removing excess heat. This also saves on buffer for added economy.

Electro Blot Maxi is a bigger system than Electro Blot Mini, and it is primarily designed for wet electroblotting of proteins, too. It offers a combination of increased capacity with economy saving features. Similarly, Electro Blot Maxi has all the features of Electro Blot Mini, but its dimension is 20 x 20 cm. Also, the unit is compatible with magnetic stirrers to aid heat dispersal and prevent pH drifts in the buffer due to incomplete buffer mixing. It includes a cooling pack to further enhance transfer efficiency by removing excess heat. This also saves on buffer for added economy.

• Gel dimension: 100 x 100 mm dual for MEBM10 ; 200 x 200 mm dual for MEBM20
• Glass thickness range: 0.25 mm up to 3 mm
• Maximum sample: 5 blot, 100 x 100 mm for MEBM10 ; 5 blot, 200 x 200 mm for MEBM20 ; 20 blot, 100 x 100 mm for MEBM20
• Buffer volume: 1000-1500 ml for MEBM10 ; 4300-6000 ml for MEBM20
• Ice cooling block: Yes
• Construction: Injection molded construction; durable; leak proof environment for complete safety and long life
• Cassette type electrodes: inexpensive; easy to replace; made of 99.99% corrosion resistant; pure platinum
• Electrical safety: lid can be located in one way only; on removal, power is disconnected from buffer chamber
• Versatile: interchangeable modules for slab gel and 2-D electrophoresis as well as electro blotting using a single universal buffer tank
• Hinged Cassettes
• Ideal for wet electro blotting of protein western blotting
• Accommodate gel thickness for 0.25 up to 3 mm
