垂直電泳槽 Mini Vertical Gel Electrophoresis Apparatus
Code  NM0220-0010
Classification  電泳相關設備
Size
Order 加入購物車
Print
PRODUCT DETAIL

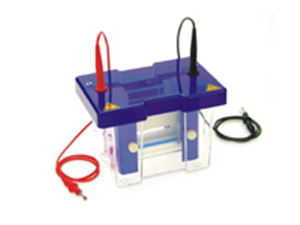

Mini Vertical Gel Electrophoresis Apparatus

Mini Vertical is an injection molded vertical electrophoresis system providing leak-proof environment and safety concerns. It has two option offerings, MV-10D and MV-10DSYS. In addition, its vertical tank is designed for blotting compatibly. Dual 10 x 10cm plates is the most popular application and it also has the capability of up to 2 plates. In addition, packages with Minis 300V power supply series are ideally offered to individuals in the laboratory at a competitive and acceptable pricing to avoid time waiting for those basic instrument and to accelerate the experimental progress.

Features
  • Low buffer consumption
  • Single molded tank
  • Compatible with all major types of precast gel
  • Up to 4 gels run at one time
  • Great indications for gel making and running
  • Ice cooling block
  • No tapes, clamps or springs needed

Specification
  • Plate dimension: 100 x 100 mm
  • Gel dimension: W75 x L80 mm
  • Unit dimension: W190 x D130 x H150 mm
  • Maximum sample capacity: 80 samples, 20 samples per gel
  • Buffer volume: 250-1200 ml
  • Ice cooling block: Yes
  • Dummy plate and casting base: Yes
  • Construction: Injection molded construction; durable; leak proof environment for complete safety and long life
  • Cassette type electrodes: inexpensive; easy to replace; made of 99.99% corrosion resistant; pure platinum
  • Electrical safety: lid can be located in one way only; on removal, power is disconnected from buffer chamber
  • Rapid casting gel: gel-making stand
  • Versatile: interchangeable modules for slab gel and 2-D electrophoresis as well as electro blotting using a single universal buffer tank

Ordering Information
Cat. No. Descriptaion

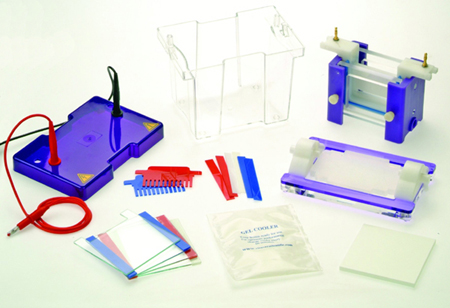

MV-10D Mini Vertical 10 x 10 cm includes glass plates with bonded 1 mm thick spacers, 2 x 12 sample combs, cooling pack, dummy plate
MV-10DSYS Mini Vertical 10 x 10 cm includes glass plates with bonded 1 mm thick spacers, 2 x 12 sample combs, cooling pack, dummy plate and casting base

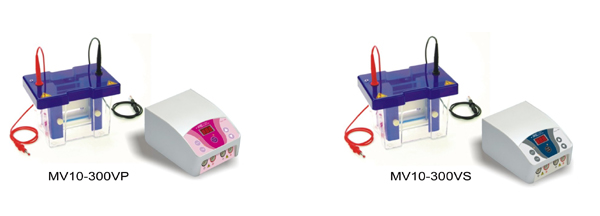

Electrophoresis Package
MV10-300VS Package of MV-10DSYS and Smart Minis 300V
MV10-300VP Package of MV-10DSYS and Pink Minis 300V



Accessories
MV-10DCAST 10 x 10 cm Casting Base
MV-10DCASTM Replacement Rubber Mats for 10 x 10 cm Casting Base
MV-10DIRM Inner Running Module
MV-10ICB Mini Cooling Pack
MV-10NG 10 x 10 cm Notched Glass Plates, 2 mm thick (pk/2)
MV-10PG 10 x 10 cm Plain Glass Plates, 2 mm thick (pk/2)
MV-10PGS0.75 10 x 10 cm Plain Glass Plates with 0.75 mm Bonded Spacers (pk/2)
MV-10PGS1 10 x 10 cm Plain Glass Plates with 1 mm Bonded Spacers (pk/2)
MV-10PGS1.5 10 x 10 cm Plain Glass Plates with 1.5 mm Bonded Spacers (pk/2)
MV-10PGS2 10 x 10 cm Plain Glass Plates with 2 mm Bonded Spacers (pk/2)
MV-10DP Dummy Plate, 10 x 10 cm
MV-10S0.75 10 cm Spacers �V0.75 mm (pk/2)
MV-10S1 10 cm Spacers �V1 mm (pk/2)
MV-10S1.5 10 cm Spacers �V1.5 mm (pk/2)
MV-10S2 10 cm Spacers �V2 mm (pk/2)

Optional Combs
MV-10-1-0.75 Comb 1 Prep, 1 Marker, 0.75 mm thick
500 ul
MV-10-5-0.75 Comb 5 sample, 0.75 mm thick
70 ul
MV-10-8MC-0.75 Comb 8 sample MC, 0.75 mm thick
40 ul
MV-10-9-0.75 Comb 9 sample, 0.75 mm thick
35 ul
MV-10-10-0.75 Comb 10 sample, 0.75 mm thick
30 ul
MV-10-12-0.75 Comb 12 sample MC, 0.75 mm thick
25 ul
MV-10-16MC-0.75 Comb 16 sample MC, 0.75 mm thick
20 ul
MV-10-20-0.75 Comb 20 sample, 0.75 mm thick
15 ul
MV-10-1-1 Comb 1 Prep, 1 Marker, 1 mm thick
650 ul
MV-10-5-1 Comb 5 sample, 1 mm thick
100 ul
MV-10-8MC-1 Comb 8 sample MC, 1 mm thick
60 ul
MV-10-9-1 Comb 9 sample, 1 mm thick
50 ul
MV-10-10-1 Comb 10 sample, 1 mm thick
40 ul
MV-10-12-1 Comb 12 sample, 1 mm thick
35 ul
MV-10-16MC-1 Comb 16 sample MC, 1 mm thick
25 ul
MV-10-20-1 Comb 20 sample, 1 mm thick
20 ul
MV-10-1-1.5 Comb 1 Prep, 1 Marker, 1.5 mm thick
1000 ul
MV-10-5-1.5 Comb 5 sample, 1.5 mm thick
140 ul
MV-10-8MC-1.5 Comb 8 sample MC, 1.5 mm thick
80 ul
MV-10-9-1.5 Comb 9 sample, 1.5 mm thick
70 ul
MV-10-10-1.5 Comb 10 sample, 1.5 mm thick
30 ul
MV-10-12-1.5 Comb 12 sample MC, 1.5 mm thick
50 ul
MV-10-16MC-1.5 Comb 16 sample MC, 1.5 mm thick
40 ul
MV-10-20-1.5 Comb 20 sample, 1.5 mm thick
30 ul
MV-10-1-2 Comb 1 Prep, 1 Marker, 2 mm thick
1300 ul
MV-10-5-2 Comb 5 sample, 2 mm thick
200 ul
MV-10-8MC-2 Comb 8 sample MC, 2 mm thick
120 ul
MV-10-9-2 Comb 9 sample, 2 mm thick
100 ul
MV-10-10-2 Comb 10 sample, 2 mm thick
80 ul
MV-10-12-2 Comb 12 sample, 2 mm thick
70 ul
MV-10-16MC-2 Comb 16 sample MC, 2 mm thick
50 ul
MV-10-20-2 Comb 20 sample, 2 mm thick
40 ul

***Sample volume for a 5 mm thick gel*
