水平電泳槽 Owl Horizontal Electrophoresis -B2 EasyCast Mini Gel‚ 12 x 14 cm
Code  NM0180-0010
Classification  電泳相關設備
Size
Order 加入購物車
Print
PRODUCT DETAIL

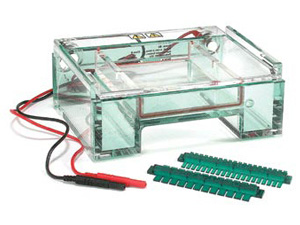

Thermo Scientific Owl B2 EasyCast Mini Gel System
Gel Size: (W x L) 12 x 14 cm
Footprint: (W x L x H) 18 x 24.50 x 9.50 cm
Running Buffer Volume: 800 ml
Our most popular size.

Our Owl B2 EasyCast Mini Gel System provides the most flexibility in a very small footprint. The longer gel length and the 2 comb slots give you the flexibility of running 8 to 48 samples on 1 gel. The optional multi load tray can increase the maximum number of samples to 108 in a multichannel pipette format. The simple to use casting method, and multiple comb and tray options, makes this Owl’s most popular system.

Owl offers a wide range of combs. The 2 comb slots on the U.V. Transmissible (UVT) gel tray, double your sample capacity by doubling the number of sample wells. Heavy duty, one piece combs eliminate comb assembly. UVT gel trays are silk screened with a florescent ruler for easy measurement of bands. This system is available with optional buffer exchange ports, catalog number B2-BP, for use with an external recirculation pump.

B2 Gel Casting Instructions
Casting with Owl's EasyCast™ Gel Casting System

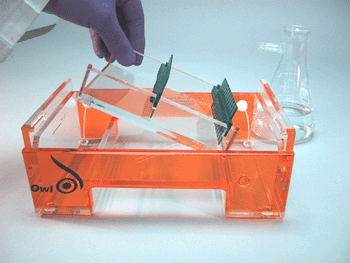

1. Place UVT gel tray in buffer chamber in the casting position. Gaskets will form a seal against the walls of the chamber.

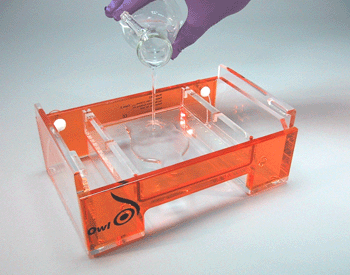

2. Pour warm (<60°) agarose onto tray and set combs in the desired comb slot(s).
3. Once solidified, turn the tray 90 degrees to the running position, remove combs, add buffer, load samples and run the gel.

B2 Sample Gel
A 1% SeaKem® Gold agarose gel (BMA Cat. No. 50150) in 1X TBE, pH 8.2 and 0.5ug/mL ethidium bromide, using an Owl Gel Casting Array with 24 tooth combs.Samples consisted of 1-10Kb DNA size marker (BMA Cat. No. 50471) in the odd wells and a 500bp DNA ladder (BMA Cat. No. 50323) in the even wells. Both sample at a concentration of appoximately 25ng/band adjusted for well volume. The gel was run for approximately 60 minutes at 7V/cm Data provided by BioWhittaker Molecular Applications, Inc.

Comb Options
Catalog
Number
 Comb
Type
 Number
of Teeth
 Thickness
of Teeth
 Width
of Teeth		 Recommended Loading Volumes
0.25cm 0.5cm 0.75cm 1.0cm
B2-12 Double Sided 12  1.0
1.5mm 		 7.2
7.2mm 		 5
8µl 		 18
28µl 		 32
49µl 		 46
69µl
B2-16 Double Sided 16  1.0
1.5mm 		 5.4
5.4mm 		 4
6µl 		 14
21µl 		 24
36µl 		 34
52µl
B2-20 Double Sided 20  1.0
1.5mm 		 3.9
3.9mm 		 3
4µl 		 10
15µl 		 18
26µl 		 25
37µl
B2-24 Double Sided 24  1.0
1.5mm 		 3
3.0mm 		 2
3µl 		 8
12µl 		 14
20µl 		 19
29µl
B2-8C Standard 8  1.0mm  12.5mm  9µl  33µl  56µl  80µl
B2-8D Standard 8  1.5mm  12.5mm  14µl  49µl  84µl  120µl
B2-PREP Prep 2  1.5mm  106/5mm  120/5.5µl  415/20µl  710/34µl  1000/48µl
B2-RL-25C Rapid Load 25(2X)  1.0mm  2.5mm  2 µl  7µl  12µl  17µl
B2-RL-25D Rapid Load 25(2X)  1.5mm  2.5mm  3µl  11µl  18µl  26µl
B2-RL-9C Rapid Load 9(1X)  1.0mm  7.2mm  5µl  19µl  32µl  46µl
B2-RL-9D Rapid Load 9(1X)  1.5mm  7.2mm  8µl  28µl  49µl  69µl
B2-WALL Wall 1  1.5mm  120mm

Complete System Includes:
 • Buffer Chamber
 • SuperSafe Lid with Attached Power Supply Leads
 • EasyCast Gasketed U.V. Transmissible (UVT) Gel Tray
 • 2 Combs: 12 & 20 Well, Double Sided, 1.0/1.5 mm Thick

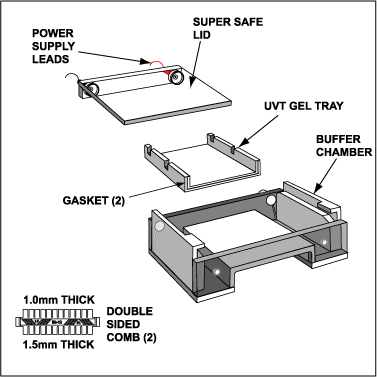

Illustration of Complete System
illustration

go


Ordering Guide
Item Description Cat. No.
Complete System B2

Accessories Cat. No.
Complete System with Buffer Exchange Ports B2-BP
External Caster (Trays not included.) B2-CST
Replacement Gaskets (1 pair.) B2-GK
EasyCast Gasketed Multi Load UVT Gel Tray: 12 Slots with 12 Combs (B2-RL-9D) B2-RL
EasyCast Gasketed Multi Load UVT Gel Tray: 12 Slots B2-RL-UVT
EasyCast Gasketed UVT Gel Tray B2-UVT
Bubble Level BBL-1
Thermo Scientific Owl Leveling Platform
(W x L) 36 x 46 cm		 B-LP
Thermo Scientific Owl Power Supply Leads PSL-5

Combs Cat. No.
Double Sided B2-12
Double Sided B2-16
Double Sided B2-20
Double Sided B2-24
Standard B2-8C
Standard B2-8D
Prep B2-PREP
Rapid Load B2-RL-25C
Rapid Load B2-RL-25D
Rapid Load B2-RL-9C
Rapid Load B2-RL-9D
Wall B2-WALL
