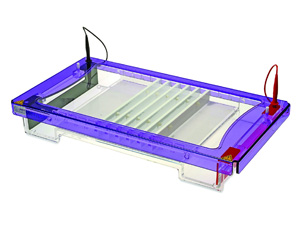

Maxi-plus Horizontal Gel

Maxi-plus is designed for rapid screening of very large numbers of cloning or PCR samples, and it has the maximum capacity of 672 samples per gel. This allows loading and analysis of exactly seven 96 well format micro titer plates. The large gel run length of 32cm also allows resolution of samples over a long distance for separation of complex sample bands such as in restriction fragment analysis.

Maxi-plus is available with a full length tray or with other tray length options of 16 or 24cm so that user's exact requirements can be matched. In addition to options for single length gel trays, Maxi-plus is available with all three gel tray lengths to provide the maximum in flexibility, versatility and value. Buffer recirculation ports are included as standard to allow enhanced resolution over extended runs while loading guides enhance well visibility for easy sample loading.

• Low buffer consumption
• Single molded tank
• Three tray options available
• Multi-channel pipette compatibility
• Great indications for gel making and running
• Up to 672 samples per tray
• No tapes, clamps or springs needed

• Gel Dimension: 200 x 100 mm ; 200 x 200 mm
• Maximum Sample: 336 samples - 260 x 160 mm Tray ; 504 samples - 260 x 240 mm Tray ; 672 samples - 260 x 320 mm Tray
• Unit Dimension: W395 x L230 x H90 mm
• Buffer Volume: 1200 ml
• Construction: Injection molded construction, durable, leak proof environment for complete safety and long life
• Cassette Type Electrodes: Inexpensive, easy to replace; made of 99.99% corrosion; resistant; pure platinum
• Electrical Safety: Lid can be located in one way only. On removal, power is disconnected from buffer chamber

***Sample Volume for a 5 mm Thick Gel***
