迷你型水平電泳槽
Code  NM0100-0010
Classification  電泳相關設備
Size
Order 加入購物車
Print
PRODUCT DETAIL

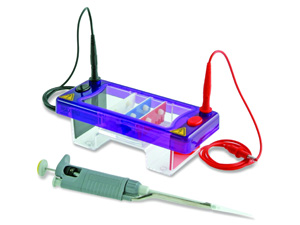

Midi plus-1 Horizontal Gel

Midi plus-1 has been designed for routine horizontal gel electrophoresis with gel tray options of 10 x 7cm and 10 x 10cm. Extending only the width of this unit allows more samples to be resolved per gel. A maximum of 100 samples per gel can be resolved making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths.

Features
  • Low buffer consumption
  • Single molded tank
  • Two tray options available
  • Easy sample loading
  • Great indications for gel making and running
  • No tapes, clamps or spring

Specification
  • Gel Dimension: 100 x 70 mm ; 100 x 100 mm
  • Maximum Sample: 50 samples - 100 x 70 mm Tray; 100 samples - 100 x 100 mm Tray
  • Unit Dimension: W220 x L125 x H90 mm
  • Buffer Volume: 300 ml
  • Construction: Injection molded construction, durable, leak proof environment for complete safety and long life
  • Cassette Type Electrodes: Inexpensive, easy to replace; made of 99.99% corrosion; resistant; pure platinum
  • Electrical Safety: Lid can be located in one way only. On removal, power is disconnected from buffer chamber
  • Rapid Casting Gel: Use casting dams

Ordering Information

Cat. No. Descriptaion
ME10-7

Midi Plus-1 10 x 7 cm UV Tray, 2 x 16 sample combs

ME10-10

Midi Plus-1 10 x 10 cm UV Tray, 2 x 16 sample combs

ME10-7-10

Midi Plus-1 10 x 7 cm & 10 x 10 cm UV Tray, 2 x 16 sample combs
Accessories

ME10-UV7

10 x 7 cm UV Tray

ME10-UV10

10 x 10 cm UV Tray

ME10-FC

Midi Plus-1 Flexible Caster

ME10-UVS

10 cm UV Gel Scoop
Optional Combs

ME10-1-0.75

Comb Prep 1, Marker 1, 0.75 mm thick

270 ul

ME10-2-0.75

Comb Prep 2, Marker 2, 0.75 mm thick

118 ul

ME10-4-0.75

Comb Prep 4, Marker 2, 0.75 mm thick

57 ul

ME10-8-0.75

Comb 8 sample, 0.75 mm thick

30 ul

ME10-10MC-0.75

Comb 10 sample MC, 0.75 mm thick

20 ul

ME10-12-0.75

Comb 12 sample, 0.75 mm thick

17 ul

ME10-16-0.75

Comb 16 sample, 0.75 mm thick

12 ul

ME10-20MC-0.75

Comb 20 sample MC, 0.75 mm thick

10 ul

ME10-25-0.75

Comb 25 sample, 0.75 mm thick

7 ul

ME10-1-1

Comb Prep 1, Marker 1, 1 mm thick

360 ul

ME10-2-1

Comb Prep 2, Marker 2, 1 mm thick

158 ul

ME10-4-1

Comb Prep 4, Marker 2, 1 mm thick

77 ul

ME10-8-1

Comb 8 sample, 1 mm thick

41 ul

ME10-10MC-1

Comb 10 sample MC, 1 mm thick

27 ul

ME10-12-1

Comb 12 sample, 1 mm thick

23 ul

ME10-16-1

Comb 16 sample, 1 mm thick

16 ul

ME10-20MC-1

Comb 20 sample MC, 1 mm thick

14 ul

ME10-25-1

Comb 25 sample, 1 mm thick

10 ul

ME10-1-1.5

Comb Prep 1, Marker 1, 1.5 mm thick

540 ul

ME10-2-1.5

Comb Prep 2, Marker 2, 1.5 mm thick

236 ul

ME10-4-1.5

Comb Prep 4, Marker 2, 1.5 mm thick

115 ul

ME10-8-1.5

Comb 8 sample, 1.5 mm thick

61 ul

ME10-10MC-1.5

Comb 10 sample MC, 1.5 mm thick

41 ul

ME10-12-1.5

Comb 12 sample, 1.5 mm thick

34 ul

ME10-16-1.5

Comb 16 sample, 1.5 mm thick

24 ul

ME10-20MC-1.5

Comb 20 sample MC, 1.5 mm thick

20 ul

ME10-25-1.5

Comb 25 sample, 1.5 mm thick

15 ul

ME10-1-2

Comb Prep 1, Marker 1, 2 mm thick

720 ul

ME10-2-2

Comb Prep 2, Marker 2, 2 mm thick

315 ul

ME10-4-2

Comb Prep 4, Marker 2, 2 mm thick

153 ul

ME10-8-2

Comb 8 sample, 2 mm thick

81 ul

ME10-10MC-2

Comb 10 sample MC, 2 mm thick

54 ul

ME10-12-2

Comb 12 sample, 2 mm thick

45 ul

ME10-16-2

Comb 16 sample, 2 mm thick

32 ul

ME10-20MC-2

Comb 20 sample MC, 2 mm thick

27 ul

ME10-25-2

Comb 25 sample, 2 mm thick

20 ul

***Sample Volume for a 5 mm Thick Gel***
