MJ-105 Mini Horizontal Gel Electrophoresis System series is designed for very fast and clear separation of DNA or RNA restriction fragments, and it is the most recognizable Mini Horizontal gel electrophoresis system. This series is offered as a complete system, including all the necessary accessories for the user to cast, and run electrophoresis. It is constructed of sturdy PC with up to 130℃ temperature capacity and it is an one molded unit, preventing cracks or leakages. This simple operated gel casting system and electrophoresis system maximize the consistency of your procedures from run to run. A safety interlock cover is designed to prevent electrical hazards during electrophoresis.
|
| Features |
- Less Agarose consumption
- Less running buffer consumption
- Quicker to see the experimental result
- Single molded tank
- Two tray options available
- Safety and ventilation Lid
- Contain 2 sets of gel maker stand
- No direct heat impact from power supply unit
- Cast 6 pieces of agarose gel in one time
- High temperature capability 130℃
- Easy sample loading
- Great indications for gel making and running
- No tapes, clamps or springs needed
|
| Specification |
- Construction: PC (Polycarbonate)
- Temperature Capacity: 130℃
- Gel Dimension: 52 x 60 mm and 107 x 60 mm
- Maximum Gel Thickness: 10 mm
- Maximum Sample: 25
- Unit Dimension: W140 x L140 x H53 mm
- Buffer Volume: 200 ml
- Lid: Safety and ventilation

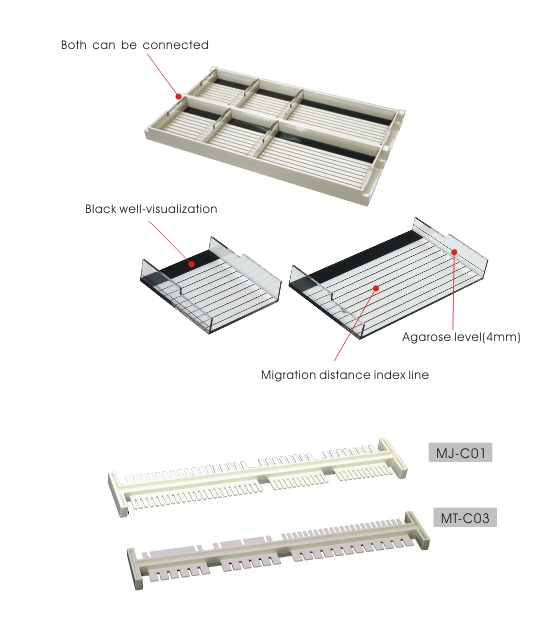

- Tray: Black well-visualization strip
Migration distance index line
Agarose level, 4mm

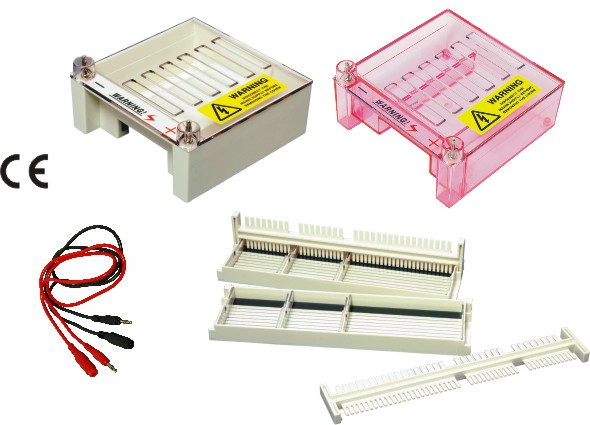

Complete with:
- 1 x Electrophoresis Tank & Cover
- 2 x Gel Maker Stand
- 2 x 107 x 60 mm Tray
- 4 x 52 x 60 mm Tray
- 2 x Double Side Comb: 8 teeth x 2 & 17 teeth; 12 teeth x 2 & 25 teeth
- 1 x Black & Red Power Cord
|
Cat. No.
|
Tooth Thickness
|
Tooth Wide
|
Sample volume for a 5 mm thick gel
|
|
MJ-C01
|
1.0 mm
|
4.0 mm
|
20 ul
|
|
1.5 mm
|
2.8 mm
|
21 ul
|
|
| Ordering Information |
|
Cat. No.
|
Descriptaion |
|
MJ-105-S
|
Snow Shorter Mini Gel System, complete with : 1 x electrophoresis tank and cover, 2 x MJ-G01, 4 x MJ-T01, 2 x MJ-T02, 2 x MJ-C01, and 1 x MT-P01
|
|
MJ-105-R
|
Red Shorter Mini Gel System, complete with : 1 x electrophoresis tank and cover, 2 x MJ-G01, 4 x MJ-T01, 2 x MJ-T02, 2 x MJ-C01, and 1 x MT-P01
|
| Accessories |
|
|
MJ-G01
|
Gel Maker Stand
|
|
MJ-T01
|
52 x 60 mm Tray
|
|
MJ-T02
|
107 x 60 mm Tray
|
|
MJ-C01
|
Analytical comb:
8 teeth x 2 for mini gel & 17 teeth for midi gel (thick: 1.0 mm)
12 teeth x 2 for mini gel & 25 teeth for midi gel (thick: 1.5 mm) |
|
MT-C03
|
Analytical comb :
Prep 1, Marker 2 & Prep 2, Marker2 for mini gel & Multiple pipettet teeth: 23 teeth for midi gel (thick: 1.0mm)
6 teeth x 2 for mini gel & 12 teeth for midi gel (thick: 1.0 mm)
|
|
MT-P01
|
Black & Red Power Cord
|
|
MJ-CASTER-C
|
Caster set with combs, including 2 x MJ-G01, 4 x MJ-T01, 2 x MJ-T02, and 2 x MJ-C01
|
|
|
|

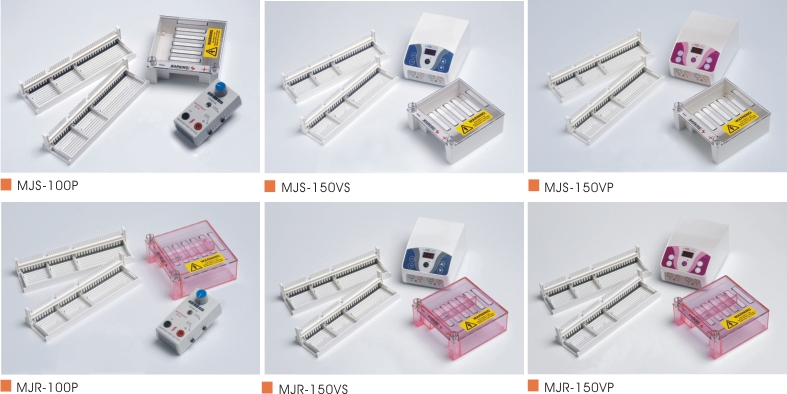

| Single Electrophoresis Packages |
|
MJS-100P
|
Package of MJ-105-S & MP-100
|
|
MJR-100P
|
Package of MJ-105-R & MP-100
|
|
MJS-150VS
|
Package of MJ-105-S & Smart Minis 150V
|
|
MJR-150VS
|
Package of MJ-105-R & Smart Minis 150V
|
|
MJS-150VP
|
Package of MJ-105-S & Pink Minis 150V
|
|
MJR-150VP
|
Package of MJ-105-R & Pink Minis 150V
|

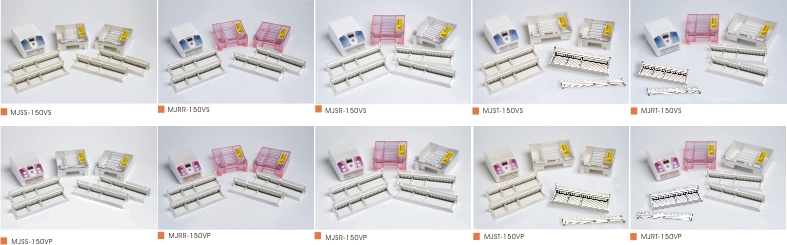

| Dual Electrophoresis Packages |
| MJSS-150VS |
Package of 2 x MJ-105-S and Smart Minis 150V
|
| MJRR-150VS |
Package of 2 x MJ-105-R and Smart Minis 150V
|
| MJSR-150VS |
Package of MJ-105-S & MJ-105-R and Smart Minis 150V |
| MJST-150VS |
Package of MJ-105-S & MT-108 and Smart Minis 150V |
| MJRT-150VS |
Package of MJ-105-R & MT-108 and Smart Minis 150V |
| MJSS-150VP |
Package of 2 x MJ-105-S and Pink Minis 150V |
| MJRR-150VP |
Package of 2 x MJ-105-R and Pink Minis 150V |
| MJSR-150VP |
Package of MJ-105-S & MJ-105-R and Pink Minis 150V |
| MJST-150VP |
Package of MJ-105-S & MT-108 and Pink Minis 150V |
| MJRT-150VP |
Package of MJ-105-R & MT-108 and Pink Minis 150V |
|
|
|
|
