恆溫攪拌水浴槽 20L Stirring Water Bath
Code  NI0060-2000
Classification  水浴
Size
Order 加入購物車
Print
PRODUCT DETAIL

Stirring Water Bath

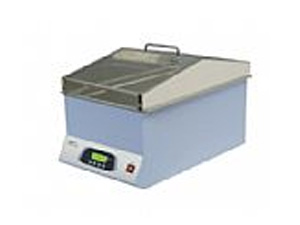

20L Stirring Water Bath

20L stirring water bath series is a big capability product line. Obviously, it contains all the features and advantages of 10 liter stirring water bath series. A magnetic stirring function to achieve a high water temperature uniformity inside the water bath. Moreover, a stirrer inside a flask or a beaker placed inside the water bath surrounding by water can still be driven.

20L stirring water bath series contains two modes. SWB-20L-1 is equipped with one stirring mechanism, whereas SWB-20L-3 is equipped with three stirring mechanisms. SWB-20L-3 is a more advance mode, which is designed for a higher level of experimental demand.

Features
  • Microprocessor control with digital performance
  • Great temperature control accuracy
  • Great temperature controlled performance
  • LCD screen showing temperature and timer simultaneously
  • Stirring speed control
  • Stirring function for both water bath and flask or beaker
  • User temperature calibration
  • Built-in water agitation
  • One or dual stirring mechanism capability



Specification

  • Controller: Digital Microprocessor controller
  • Display: LCD - User friendly operating ( Time and Temperature can be seen at the same time )
  • Safety Device: Warning indication on screen and automatically shut down
  • Stirring Speed: 400~1800rpm
  • Number of Stirring Mechanism: 1 for SWB-20L-1 /3 for SWB-2-3
  • Bath Temperature: 5˚C above ambient to 99˚C
  • Bath Tank Material: 304 stainless steel
  • Bath Inner Dimension: W300 x L500 x H150mm
  • Bath Capability: approx. 20L
  • Lid Material: Transparent acrylic material assembled with stainless steel construction
  • Temperature increase: 0.1˚C
  • Temperature calibration: Yes
  • Operating temperature: Ambient ~ 40˚C
  • Unit dimension: W330 x L540 x H240 mm (without Lid)
  • Construction: Painted iron metal
  • Data log: RS 232
  • Data Log software package available
  • Weight: approx. 14.0Kg
  • Related Voltage: 110 or 220V

Ordering Information
Cat. No. Description
SWB-20L-1-110/220 Stirring Water Bath (20L) with 1 built-in stirrer
SWB-20L-3-110/220 Stirring Water Bath (20L) with 3 built-in stirrer
