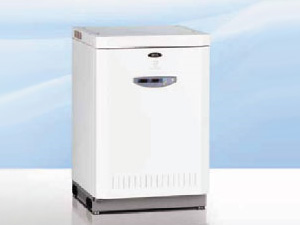

Single SCI-165D
Double SCI-325D
| Stackable |
Temperature accuracy |
| Model SCI-165D can be stacked on another SCI-165D or our ACI/M-165. |
Water-jacket and outside door temperature are controlled by different sensors and controllers, minimizing the effect of outside temperature changes. |
| High-performance digital controls |
Many accessories available to optimize your needs |
| CO2 concentration, chamber temperatuer, and door heating are all digitally controlled using high-resolution analog-to-digital converters. All settings, adustments, and calibrations are controlled conveniently from the front panel. |
Dust filter to prevent contamination, small door set to isolate each shelf, cabinet pedestal with casters, GAs-Guard system. |
| Contamination protection |
Automatic setup function |
| An optional Dust filter can be attached inside the chamber with one snap. Shelves and shelf holders can be removed without any tools. Chamber corners are rounded for easy cleaning. |
Automatic Setup Function has made setup easier than ever. At startup, ASF will automatically calibrate the CO2 zero adjustment and reach the set temperature and CO2 concentration. |
| Options |
 |
 |
 |
Regulator
Two-phase pressure regulator. Secondary pressure gauge has a 0.2 Mpa maximum, making lower pressure adjustments easy. Primary pressure regulator: 0-25 MPa Secondary pressure regulator: 0-0.2 Mpa |
Shelves and Shelf holders
TMeshed Stainless sheets. Six shelves are standard, with up to 21 shelves maximally. |
Half-sized Aluminum trays
Two half-sized trays can fit into each level. Lightweight and easy to handle, they make handling cultures easier and faster. |
 |
 |
|
Incubator Pedestals
the IM-022 pedestal rolls on casters; the IM-022 is stationary, with level-adjusting screws. |
Dust filter
Filter Installation kit IF-160
Dust filter only IF-15 |
|
| Specifications |
| |
SCI-165D
|
SCI-325D
|
| Dimensions (mm) |
W625×D625×H955 |
W625×D625×H1910 |
| Inside Dimensions (mm) |
W500×D480×H680 |
W500×D480×(H680×2) |
| Capacity |
163L |
163L×2 |
| Shelf board Dimensions (mm) |
W430×D430×H15 |
W430×D430×H15 |
| No. of shelf board |
6 (maximum 21) |
12 (maximum 42) |
| Heating system |
Water jacket system |
Water jacket system |
| Capacity of jacket water |
41L |
41L X 2 |
| Temperature control system |
Digital PID control |
Digital PID control |
| Temperature range |
Room temperature +5～50℃ |
Room temperature +5～50℃ |
| Temperature accuracy |
+0.1℃ |
+0.1℃ |
| Temperature distribution |
+0.1℃ |
+0.1℃ |
| CO2 control system |
On&Off control by microcomputer conduction |
On&Off control by microcomputer conduction |
| CO2 density range |
0～19.9% |
0～19.9% |
| CO2 control accuracy |
+0.1 % |
+0.1 % |
| Humidify system |
Natural evaporation |
Natural evaporation |
| Power supply |
AC100 7A |
AC100 14A |
| Weights (Filled weights) |
92kg(133kg) |
184kg(266kg) |
|
