| | PRODUCT DETAIL | Thermoblock Reactor

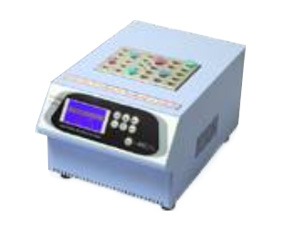

| Cool-hotter Dry Bath Incubator |
There are two modes of Cool-Hotter Dry Bath Incubators available with different temperature increasing and decreasing performances. With the feature of interchangeable block, both modules are for a variety of applications including ligation, storage, restriction digests, denaturing DNA, BUN, melting agar, coagulation studies, hybridization and Hot Start thermo-cycled reaction. Both models incorporate a PID controller for easy temperature selection, rapid heat up and cooling down with an excellent stability. Temperature may be set in 0.1˚C increments from -10˚C to 100 ˚C. Both contain Constant Operation, Programmable Mode, and Annealing Mode.
Similarly to Dry Bath Incubator, there are optional Data Logging software package, and optional Function Control software package available for different levels of user requirement.
|
| Features |
- Microprocessor control with digital performance
- Wide temperature control range
- Great temperature controlled performance
- Timer
- User Calibration
- Used as cooling-hotter water bath incubator
- Data log software package available
- Function control software package available
|
| Specification |
- Controller: Digital Microprocessor controller
- Display: 128 x 64 Dot Matrix Display
- Temperature control range: -10 ~100˚C in the environment of 25˚C
- Temperature increase: 0.1˚C
- Temperature calibration: Yes
- Temperature uniformity: ± 0.2˚C
- Temperature accuracy: ± 0.2˚C
- Operation mode :
- Constant operation : Constant temperature -10 ~100˚C with timer 1-9999 mins
- Program operation : Programmable : 1-4 steps and 1-9 cycle time with timer 1-9999 mins
- Data log: RS 232
- Operating temperature: Ambient ~ 40˚C
- Safety device: Leakage proof for heating chamber
- Special feature: Used as water bath incubator
- Heating chamber material: Aluminum
- Block material: Alumiinum
- Block dimension: W90 x L125 x H50 mm for MC-01N
- Block type: Standard and customized types are available
- Rated voltages: 110 / 220V selectable
- Unit dimension: W200 x L295 x H140 mm
- Weight: 8kg
Aluminum Insert Block |
| Ordering Information |
| Cat. No. |
Description |
| MC-01N-110/220 |
Cool-Hotter Dry Bath Incubator; without block |
| MC-01S-110/220 |
Superior Cool-Hotter Dry Bath Incubator; without block |
| |
|
| Accessories |
Description |
| MC-MP01 |
Block for Microplate ; Titerplate (Plane Bottom) |
| MC-MP02 |
Block for 96 wells deep Microplate or PCR plate or 0.2 ml PCR Strip Tube |
| MC-B0.5+1.5 |
Combination block for 1.5 or 2.0 ml tube, 15 wells, and for 0.5 ml tube, 15 wells |
| MC-B0.2+0.5+1.5 |
Combination block for 0.2 ml tube, 24 wells; for 0.5 ml tube, 10 wells; and for 1.5 or 2.0 ml tube, 10 wells |
| MC-B0.2H |
Half block for 0.2 ml tube, 64 wells or for 0.2 ml PCR strip tube for 8 wells x 8 |
| MC-B0.5H |
Half block for 0.5 ml tube, 15 wells |
| MC-B1.5H |
Half block for 1.5 or 2.0 ml tube, 15 wells |
| MC-B0.5 |
Block for 0.5 ml tube, 30 wells |
| MC-B1.5 |
Block for 1.5 or 2.0 ml tube, 30 wells |
| MC-B10 |
Block well size 10 mm, 30 wells |
| MC-B13 |
Block well size 13 mm, 30 wells |
| MC-B17 |
Block for 15 ml centrifuge tube, 15 wells |
| MC-B20 |
Block well size 20 mm, 15 wells |
| MC-B25 |
Block well size 25 mm, 6 wells |
| MC-B29 |
Block for 50 ml centrifuge tube, 6 wells |
| MC-DLSW |
Single Licensed Software Package for data logging |
| MC-PCSW |
Single Licensed Software Package for control function |
| MC-DLSW-R |
Single Licensed Software Package for data logging, including a RS 232 Cable |
| MC-PCSW-R |
Single Licensed Software Package for control function, including a RS 232 Cable |
| MS-BL95 |
Block Lifter |
| |
|
|
|
|
|
