Genius Heating Dry Bath Incubator
Code  NF0040-0010
Classification  乾浴2
Size
Order 加入購物車
Print
PRODUCT DETAIL

Thermoblock Reactor

Genius Heating Dry Bath Incubator
One and dual block Genius Dry Bath Incubators use interchangeable heating block modules for a variety of applications, including restriction digests, denaturing DNA, BUN, melting agar, coagulation studies, hybridization and Hot Start thermo-cycled reaction, in addition to the function of water bath. All models incorporate a PID controller for easy temperature selection, rapid heat up and excellent stability. Temperature may be set in 0.1℃ increments from 5℃ above ambient to 150℃. An optional temperature probe is available for placing directly in samples. A timer equipped may be set from 0 to 999 mins for user's convenience. In addition to the optional Data Logging software package, another optional Function Control software package controls dry bath incubator through a computer.

Product Description
  • Microprocessor control with digital performance
  • Wide temperature control range
  • Great temperature controlled performance
  • Timer function
  • User Calibration
  • Used as water bath incubator
  • Data log software package available
  • Function control software package available



Specification

  • Controller: digital microprocessor controller
  • Display: one digital display
  • Power: 200W for MD-01N; 300W for MD-02N
  • Temperature control range: 5˚C above ambient to 150˚C
  • Temperature increase: 0.1˚C
  • Temperature calibration: Yes
  • Temperature uniformity @37˚C: ± 0.2˚C
  • Temperature accuracy @37˚C: ± 0.2˚C
  • Timer: 0-999 mins
  • Safety device: leakage proof for heating chamber
  • Operating temperature: ambient to 40˚C
  • Special feature: used as water bath incubator
  • Heating chamber material: 304 stainless steel
  • Block material: aluminum
  • Block type: standard and customized types are available
  • Data Log: RS 232
  • Rated voltage: 110V or 220V
  • Unit Dimension: W200 x L290 x H80 mm
  • Weight: 2.6 kg for MD-01N; 2.8 kg for MD-02N

Aluminum Insert Block

Customerised block is also available.



Ordering Information
Cat. No. Description

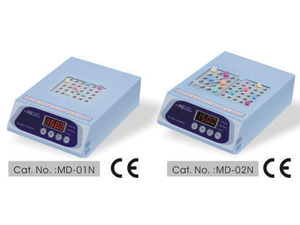

MD-01N-110/220 Heating Dry Bath Incubator Single Block Unit, 110V/220V
MD-02N-110/220 Heating Dry Bath Incubator Dual Block Unit, 110V/220V

Accessories Description
MD-MP01-S Block for Microplate ; Titerplate
Plain Block for Single Block Unit Only
MD-MP02-S Block for 96 wells deep Microplate or PCR plate
For Single Block Unit Only
MD-MP01-D Block for Microplate ; Titerplate
For Dual Block Unit Only
MD-MP02-D Block for 96 wells deep Microplate or PCR plate
For Dual Block Unit Only
MD-B0.5/1.5 Double side block : one side for 1.5 or 2.0 ml tube, 20 wells ;
Opposite side for 0.5 ml tube, 30 wells
MD-B0.5+1.5 Combination block : for 0.5 ml tube, 12 wells and for 1.5 or 2.0 ml tube, 12 wells (on the same side)
MD-B0.2 Block for 0.2 ml tube, 64 wells or for 0.2 ml PCR strip tubes for 8 wells x 8
MD-B0.5 Block for 0.5 ml tube, 20 wells
MD-B1.5 Block for 1.5 ml tube, 20 wells
MD-B10 Block well size 10 mm, 20 wells
MD-B13 Block well size 13 mm, 20 wells
MD-B17 Block for 15 ml centrifuge tube, 12 wells
MD-B20 Block well size 20 mm, 12 wells
MD-B25 Block well size 25 mm, 6 wells
MD-B29 Block for 50 ml centrifuge tube, 4 wells
MD-DLSW Single Licensed Software Package for data logging
MD-PCSW Single Licensed Software Package for control function
MD-DLSW-R Single Licensed Software Package for data logging, including a RS 232 Cable
MD-PCSW-R Single Licensed Software Package for control function, including a RS 232 Cable
MS-BL95 Block Lifter
