Elite Dry Bath Incubator
Code  NF0020-0010
Classification  乾浴2
Size
Order 加入購物車
Print
PRODUCT DETAIL

Thermoblock Reactor

Elite Dry Bath Incubator
Elite dry bath incubator series was introduced in January 2008. There are one-block and dual-block modes available. This series is a more advanced version of dry bath incubator. Its interchangeable heating block modules can be used for a variety of applications, including restriction digests, denaturing DNA, BUN, melting agar, coagulation studies, hybridization and Hot Start thermo-cycled reaction. Due to its molded aluminum chamber, it makes Elite dry bath incubator as a mini water bath. Both models incorporate a PID controller for easy temperature selection, rapid heat up and excellent stability. Temperature may be set in 0.1℃ increments from 5℃ above ambient to150℃. An optional temperature probe is available for placing directly in samples. Both temperature value and timer can be displayed on the LCD display at the same time for user's convenience. Optional Data Logging software package saves real time heating- up process to computer. The second optional software package, Function Control software package, controls dry bath incubator through computer as well as real time data recording as a comprehensive design for your specified requirement.

Features
  • Microprocessor control with digital performance
  • Wide temperature control range
  • Great temperature controlled performance
  • LCD display
  • Timer function
  • User Calibration
  • Used as water bath incubator
  • Data log software package available
  • Function control software package available



Specifications

  • Display: LCD display
  • Unit dimension: W152 x L150 x H135 mm for EL-01; W152 x L230 x H135 mm for EL-02
  • Power: 200W for EL-01; 300W for EL-02
  • Controller: digital microprocessor controller
  • Temperature control range: 5˚C above ambient to 150˚C
  • Temperature increase: 0.1˚C
  • Temperature calibration: Yes
  • Temperature uniformity @37˚C: ± 0.2˚C
  • Temperature accuracy @37˚C: ± 0.2˚C
  • Timer: up to 99 hrs 59 mins, continuous
  • Safety device: leakage proof for heating chamber
  • Operating temperature: ambient to 40˚C
  • Special feature: used as water bath incubator
  • Heating chamber: molded aluminum chamber
  • Block material: aluminum
  • Block type: standard and customized types are available
  • Data log: RS 232
  • Weight: 2.1 kg for EL-01; 2.8 kg for EL-02
Aluminum Insert Block


Specifications
Cat. No. Description

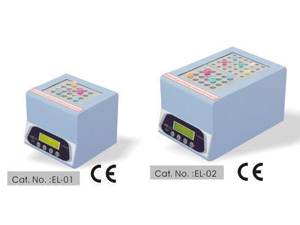

EL-01-110/220 Elite Dry Bath Incubator, Single Block Unit, 110V/220V
EL-02-110/220 Elite Dry Bath Incubator Dual Block Unit, 110V/220V

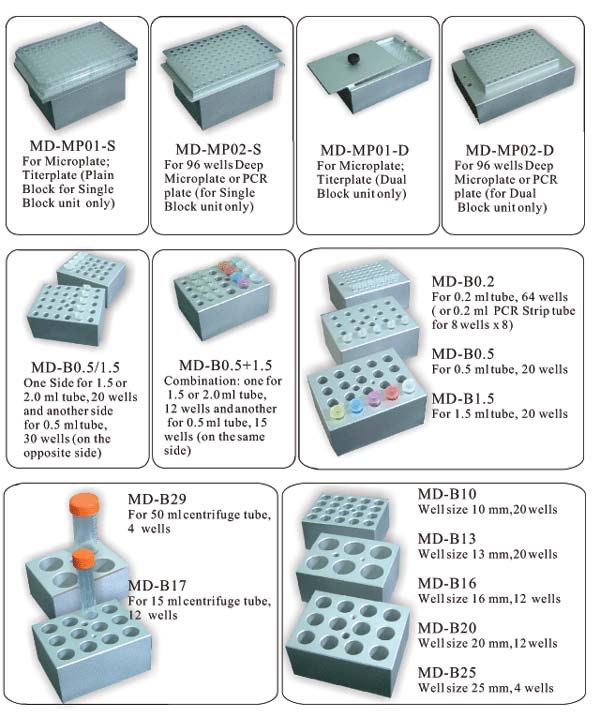

Accessories Description
MD-MP01-S Block for Microplate ; Titerplate
Plain Block for Single Block Unit Only
MD-MP02-S Block for 96 wells deep Microplate or PCR plate
For Single Block Unit Only
MD-MP01-D Block for Microplate ; Titerplate
For Dual Block Unit Only
MD-MP02-D Block for 96 wells deep Microplate or PCR plate
For Dual Block Unit Only
MD-B0.5/1.5 Double side block : one side for 1.5 or 2.0 ml tube, 20 wells ;
Opposite side for 0.5 ml tube, 30 wells
MD-B0.5+1.5 Combination block : for 0.5 ml tube, 12 wells and for 1.5 or 2.0 ml tube, 12 wells (on the same side)
MD-B0.2 Block for 0.2 ml tube, 64 wells or for 0.2 ml PCR strip tubes for 8 wells x 8
MD-B0.5 Block for 0.5 ml tube, 20 wells
MD-B1.5 Block for 1.5 ml tube, 20 wells
MD-B10 Block well size 10 mm, 20 wells
MD-B13 Block well size 13 mm, 20 wells
MD-B17 Block for 15 ml centrifuge tube, 12 wells
MD-B20 Block well size 20 mm, 12 wells
MD-B25 Block well size 25 mm, 6 wells
MD-B29 Block for 50 ml centrifuge tube, 4 wells
MD-DLSW Single Licensed Software Package for data logging
MD-PCSW Single Licensed Software Package for control function
MD-DLSW-R Single Licensed Software Package for data logging, including a RS 232 Cable
MD-PCSW-R Single Licensed Software Package for control function, including a RS 232 Cable
MS-BL95 Block Lifter
