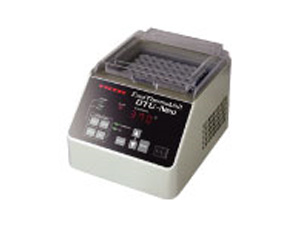

| Dry Thermo Unit DTU-Neo |  | | Code | NE0040-0010 | | Classification | 乾浴1 | | Size | | | Order |  |
| Print |
|
| | PRODUCT DETAIL | Programmable temp. control from ambient +3°C to +105°C with accurate and speedy. Chageable blcok a size of well plate in compact body.
| Purpose of use |
- Denaturation of DNA,RNA and inactivation of enzyme
- Restriction/Modification enzyme reaction of DNA
- Hydrolytic reaction of Glycoprotein,Fatty acid
- Inactivation of enzyme
|
| Features |
|
Speedy and accurate temp. control from ambient+3°C to +105°C
You can have a prompt feedback of temperature by PID controlled peltier device cooling system. It has an accuracy of temperature equivelent to water bath.
9 segments of program available
You can set a segment of temperature and time up to 9 in programming mode.
"Wait" function is available.
It counts timer after attaining the set temperature which allows precise temperature control for enzymatic reaction.
Improved transition time of teperature.
It helps to make most of the program function. The temperature control is based on the block temperature, not the heat source.
|
| Specifications |
| Temp. range |
ambient+3°C~+105°C |
| Temp.Accuracy |
±0.1°C~0.2°C |
| Minimum setting unit |
0.1°C |
| Temp. controller |
Thermister PID |
| Setting method |
UP/DOWN KEY |
| Display |
LED/Set Temp. or Block temp. |
| Heater/Cooler |
Rubber heater/Forced cooling by fan |
| Program function |
Settings of 9 segments of temperature and time, 0-99h59m |
| External dimensions |
210x268x175Hmm |
| Weight |
approx.4kg(excluded block) |
| Power supply |
AC100V-240V,2A |
| Standard accessory |
Power cable:1,Fuse:1 |
|
|
|
|
