Peristaltic Pump 30-400 rpm
Code  NC0040-0400
Classification  蠕動幫浦
Size
Order 加入購物車
Print
PRODUCT DETAIL

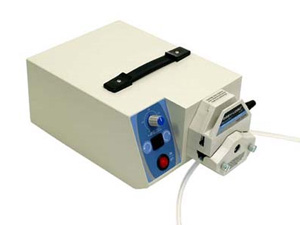

Dual Peristaltic Pump

Dual peristaltic pump (Cat. No.: MFU-01) is a digital microprocessor version, providing a much better accurate rpm control. It is equipped with two peristaltic pumps. Each pump can be operated separately due to individual control mechanism. In addition, a timer is also equipped with the alarm function. MFU-01 also meets the most application requirements. Dual peristaltic pump can be used for the applications including filtration, circulation, sampling, chemical spraying, dispensing transferring, feeding, and filling. Furthermore, it can be use as a metering pump. Easy-to-use peristaltic pump, which accepts several different silicon tubing sizes for a wide range of flow rate. The design of reversible flow control delivers better convenience and flexibility to the user.


Features
  • Compact size
  • Digital precise control
  • Easy load pump header
  • Two peristaltic pump
  • Individual controller for each pump
  • Wide applications
  • Reversible for purging

Specification
  • Rpm / Inc: 0.1 - 100.0 / 0.1
  • Motor: Stepping motor
  • Speed Control: ±1%
  • Number of peristaltic pump: 2
  • Number of Rollers: 3
  • Maximum Pump Speed: 100rpm
  • Variable Flow Rate: 0.6 ~380ml/min
  • Operating Temperature: Ambient to 40℃
  • Unit Material: Printed metal
  • Unit Dimension: 265 x 340 x 180mm (W x L x H)
  • Rated Voltages: 100 - 240V
  • Weight: approx. 7.5kg

Sillcon Tube and Typical Rate

Silicon Tubing
Cat. No.

Tube I.D.
Size('')

10 rpm
(ml/Rev.)

50 rpm
(ml/Rev.)

100 rpm
(ml/Rev.)

MU-S13

1/32

0.6

3

6

MU-S14

1/16

2.1

10.5

21

MU-S16

1/8

8

40

80

MU-S25

1/4

17

85

170

MU-S17

3/8

28

140

280

MU-S18

3/16

38

190

380


Ordering Information

Cat. No.

Description

MFU-01

Dual Peristaltic Pump

Accessories

MU-S13

Silicon tube I.D. 1/32''25ft

MU-S14

Silicon tube I.D. 1/16''25ft

MU-S16

Silicon tube I.D. 1/8''25ft

MU-S25

Silicon tube I.D.3/16''25ft

MU-S17

Silicon tube I.D.1/4''25ft

MU-S18

Silicon tube I.D.3/8''25ft
