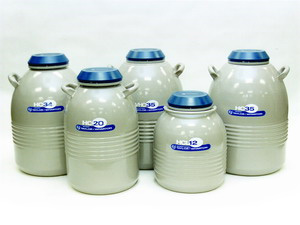

High Capacity Refrigerators - HC Series
The High-Capacity (HC) Series of refrigerators are designed for storing large quantities of a variety of materials at cryogenic temperatures.
Temperatures generally range between -320° F (-196° C) at the liquid surface, and -299° F (-184° C) under the closed necktube core.
- New Rugged Construction - ribbed high stregth aluminum body, magniformed necktube design, and more durable paint.
- Versatile storage system - convenient canister index location ring and internal spider
- Superior vacuum performance with super insulation provides maximum holding times.
- Security - optional low-level alarm is available for use with more valuable samples.
- Mobility - Roller bases are available for some models.
|
Models
|
HLC12
|
HC20
|
HC34
|
HC35
|
VHC35
|
|
Static Holding Time days (1)
|
60
|
87
|
200
|
130
|
130
|
|
Working Time days (2)
|
37
|
54
|
125
|
81
|
81
|
|
Evaporation Rate (1) liters/days
|
0.20
|
0.23
|
0.17
|
0.27
|
0.27
|
|
Liquid Nitrogen Capacity - liters
|
12
|
20
|
34
|
35
|
35
|
|
Weight Empty
|
- lbs. -kg.
|
21.6 9.8
|
26.4 12.0
|
35.38 16.1
|
39 17.7
|
37.9 17.2
|
|
Weight Full (3)
|
- lbs. -kg.
|
43.0 19.5
|
62.0 28.2
|
95.9 43.6
|
101.3 46.0
|
100.2 45.5
|
|
Neck Diameter
|
- in. - mm.
|
3.6 91
|
3.6 91
|
3.6 91
|
4.7 119
|
4.7 119
|
|
Overall Height
|
- in. - mm.
|
19.0 482
|
24.25 615
|
26.31 668
|
26.8 681
|
26.8 681
|
|
Overall Diameter
|
- in. - mm.
|
15.6 396
|
15.6 396
|
18.8 478
|
18.8 478
|
18.8 478
|
|
Number of Canisters
|
|
6
|
6
|
6
|
10
|
6 (4)
|
|
Canister Dimensions
|
- in. -mm.
|
2.75x5 70x127
|
2.75x11 70x279
|
2.75x11 70x279
|
2.64x11 67x279
|
3.7x11 94x279
|
|
Number of 1.2 ml & 2.0 ml vials (5/cane)
|
NA
|
570
|
570
|
850
|
1050
|
|
Number of 1.2 ml & 2.0 ml vials (6/cane)
|
NA
|
684
|
684
|
1020
|
1260
|
|
Number of 1/2 cc straws -(10 per cane)
|
NA
|
1850
|
1850
|
2800
|
3000
|
|
Number of 1/2 cc straws -Bulk ( 1 level)
|
2940
|
2940
|
2940
|
4900
|
4950
|
|
Number of 1/2 cc straws -Bulk (2 levels)
|
NA
|
5880
|
5880
|
9800
|
9900
|
|
7thCanister
|
NA
|
NA
|
NA
|
NA
|
R036-9C27
|
|
Roller Base
|
R018-8C00
|
R018-8C00
|
R033-8C00
|
R033-8C00
|
R033-8C00
|
| Cryo-Sentry Level Alarm |
N/A
|
| Order# |
Description |
| 12HCLB-6 |
HCL12 Refrigerator with 5-inch canisters (6) |
| R012-9C24 |
HCL12-6 canister |
| R012-9C16 |
HCL12-6 necktube core |
| R018-8C00 |
HCL12 roller base |
| 20HCB-11M |
HC20 Refrigerator with 11-inch canisters (6) |
| R020-9C24 |
HC20 canister |
| R020-9C16 |
HC20 necktube core |
| R018-8C00 |
HC20 roller base |
| R034-8C15 |
HC20 Cryo-Sentry level alarm |
| 34HCB-11M |
HC34 Refrigerator with 11-inch canisters (6) |
| R034-9C24 |
HC34 canister |
| R034-9C16 |
HC34 necktube core |
| R033-8C00 |
HC34 roller base |
| R034-8C15 |
HC34 Cryo-Sentry level alarm |
| 35HCB-11M |
HC35 Refrigerator with 11-inch canisters (10) |
| R037-9C24 |
HC35 canister |
| R037-9C16 |
HC35 necktube core |
| R033-8C00 |
HC35 roller base |
| R037-8C15 |
HC35 Cryo-Sentry level alarm |
| 35VHCB-11M |
VHC35 Refrigerator with 11-inch Canisters (6) |
| R036-9C24 |
VHC35 canister |
| R036-9C27 |
7th canister |
| R036-9C16 |
VHC35 necktube core |
| R036-8C30 |
VHC35 Cryo-Sentry level alarm |
| R033-8C00 |
VHC35 roller base |
|
|
|
|
|
