Infrared Detectors
Code  NA0160-0010
Classification  冷凍保存系列
Size
Order 加入購物車
Print
PRODUCT DETAIL

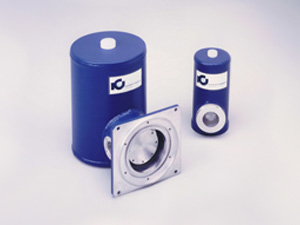

N2 Infrared Detectors

41-1915

(left)

41-1009

(right)

Diameter

 Inches

3.0

4.0

Height

 Inches

5.2

9.0

Empty Weight

 Pounds

3.0

4.0

Liquid Nitrogen Capacity

 Liters

.2

.7

Infrared - Model #41-1915:

A side-looker, this model has an enlarged cell post and viewing area for cooling several detectors or an array.  Of particular interest is the availability of coaxial multipin electrical connectors.  This new innovation is just another step in the continued product improvement of our units.  Units are complete with mating electrical plugs, evacuation / relief valve, and neck plug.

Infrared - Model #41-1009:

Also a side-looker, this model is an extended hold time unit for the cooling of arrays.  Normally equipped with a 37 pin connector and mating plug, this unit provides a very stable platform to mount sensitive detectors. Featuring aluminum construction with fiberglass neck tube, trunnion, and super-insulation for extended operating times the unit is complete with evacuation valve and wiring.
