LN2 Refrigerator Group

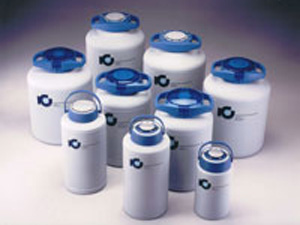

The Refrigerator Group consists of 10 portable aluminum cryogenic vessels, including the new Arctic 22, which range in size from 6 liters to 50 liters. These vessels are complete with canisters for the cryo-preservation of biological specimens. The largest customers of this product line include dairy farmers, veterinarians, hospitals and bio-labs. The features of this group are a molded handle assembly, transparent dome cover, more product capacity, better working visibility, more ruggedness, unique styling and a 5-year warranty.
| |
|
IC-6R
|
IC-10R
|
IC-20R
|
IC-20RX
|
IC-35R
|
IC-35RX
|
IC-38RX-6
|
IC-38RX-10
|
IC-50RX
|
|
LN2 Capacity
|
liters
|
6
|
10
|
20
|
20
|
35
|
35
|
38
|
38
|
50
|
|
Working Time
|
days
weeks
|
18
3
|
62
9
|
128
18
|
65
9
|
182
26
|
112
16
|
84
12
|
84
12
|
78
11
|
|
Static Hold Time
|
days
|
30
|
100
|
205
|
105
|
291
|
180
|
135
|
135
|
125
|
|
Evaporation Rate
|
liters/days
|
.2
|
.10
|
.10
|
.19
|
.12
|
.19
|
.28
|
.28
|
.4
|
|
Dimensions
Necktube
Height
Outside Diameter
|
in
mm
in
mm
in
mm
|
2.25
57
17
432
8.75
220
|
2.25
57
23
584
11.25
286
|
2.25
57
25
630
15
380
|
3.75
95
25
630
15
380
|
2.25
57
25
630
19
483
|
3.75
95
25
630
19
483
|
5.0
127
27.6
691
19
483
|
5.0
127
27.6
691
19
483
|
3.75
95
30.5
775
19
483
|
|
Weight
Empty
Full
|
lb
kg
lb
kg
|
6
3
16
7.5
|
19.5
9
37
17
|
24
10
60
26
|
24
10
60
26
|
29
13
90
40
|
29
13
90
40
|
32
14.5
100
45
|
32
14.5
100
45
|
38
17
127
58
|
|
Canisters
Length
Internal Diameter
Number
|
inches
mm
inches
mm
|
5
127
1.75
44
6
|
11
279
1.75
44
6
|
11
279
1.75
44
6
|
11
279
2.96
75
6
|
11
279
1.75
44
6
|
11
279
2.96
75
6
|
11
279
4.1
104
6
|
11
279
2.96
75
10
|
n/a
n/a
n/a
n/a
6
|
|
Capacity
0.5cc straws (on canes)
0.5cc straws (bulk)
1.2 ml vials
|
|
330
990
n/a
|
660
1800
216
|
660
1800
216
|
2340
5820
792
|
660
1800
216
|
2340
5820
792
|
4680
10320
1584
|
3900
9700
1320
|
n/a
n/a
768*
|
| |
Model letters denote type of unit and numbers approximate liter capacity; R-refrigerator, RX-expanded capacity refrigerator.
Empty and full weights are determined without canisters.
Static hold time and evaporation rate are nominal.
Working time will vary depending on application.
Straw capacity on canes:
10 straws/cane for 11" canisters
5 straws/cane for 5" canisters
Vial capacity on canes: 6 vials/cane
Bulk: two level goblets for 11"; one level for 5"
*With square canisters, 2 1/4 x 1 7/8 high box
8 box rack (768 -1/2 x 1/2 x 1 7/8 compartments.
ARCTIC 22
| |
|
R |
RX |
|
LN2 Capacity
|
liters
|
22 |
22 |
|
Working Time
|
months
|
4 |
4 |
|
Dimensions
Necktube
Height
Outside Diameter
|
in
mm
in
mm
in
mm
|
2.62
66
15
380
26
660
|
2.62
66
15
380
26
660
|
|
Weight
Empty
Full
|
lb
kg
lb
kg
|
25
11
64
29
|
25
11
64
29
|
|
Canisters
Length
Internal Diameter
Number
|
inches
inches
mm
|
11
2.0
51
3
|
11
2.0
51
6
|
|
Capacity
0.5cc straws (on canes)
0.5cc straws (bulk)
|
|
500
1360
|
1000
2720
|
| |
|
Holding Time--4 months, this is the accepted standard worldwide for farm semen tanks.
Universal Model--The Arctic 22 holds 500 straws, with only 3 canisters. This is adequate for most dairy farms. In fact, many small dairy operations may be well served with only one or two canisters.
Flexibility--When this same basic tank is equipped with (6) six canisters (with a capacity of 1000 straws) it is called the Arctic 22RX. This model is ideal for technician use, for large dairy operations or for large export shipments.
Canisters--500 straw capacity achieved with only (3) three canisters of 2.0-inch diameter. Has great advantage of ease of use. Easy and quick to access and re-insert.
Visibility--Necktube opening of 2 5/8" will provide the best visibility and working area of any 4 month farm tank in the world.
Ruggedness--The strength of the necktube increases with diameter. This will be the largest and strongest necktube in the industry for a 4 month farm tank.
Styling--The Arctic 22 has a sleek, stylish look with exciting new color tones.
No Spider--This is a patented feature with IC tanks. This canisters are attached in such a manner as to not require a divider in the bottom of the tank. This greatly simplifies the re-insertion of canisters.
Warranty--These models are designed for rugged, reliable service and carry a 5-year warranty.
|
|
