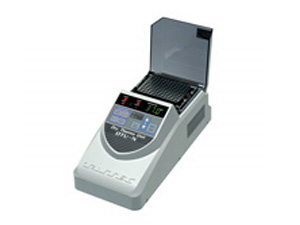

| Dry Thermo Unit DTU-N |  | | Code | NQ0020-0010 | | Classification | 培養系列 | | Size | | | Order |  |
| Print |
|
| | PRODUCT DETAIL |
Programmable temp. control from ambient +5°C to +100°C with accurate and speedy. Chageable blcok a size of well plate in compact body
Purpose of use
- Denaturation of DNA,RNA and inactivation of enzyme
- Restriction/Modification enzyme reaction of DNA
- Hydrolytic reaction of Glycoprotein,Fatty acid
- Inactivation of enzym
|
|
Feature
|
Speedy and accurate temp. control
Temperature rise from +25°C to +95°C in about 15 minutes.
9 segments of program available
You can set a segment of temperature and time up to 9 in programming mode.
Heavy duty resinous body
.
User-friendly aluminum blocks(Option)
Available to use 0.2ml, 0.5ml, 1.5ml tubes and micro plates. Blocks in half size for a small amount use are also available. *These blocks are not compatible with blocks used for DTU-1B/2B/1C/2C.
|
|
Specifications
|
| Temp. range |
-20°C~-1°C |
| Temp. accuracy |
±0.1°C |
| Temp. controller |
Thermister PID |
| Timer |
0~99h 59min./Program |
| Display |
Digital |
| Heater |
100W(DC24V) |
| Temp. rising/falling time |
25°C to 95°C/approx.15min.(by A-0696) |
| Program function |
Temp./Timex9programs |
| Safety device |
high temp. safety device/Circuit breaker |
| Abnormal diagnosis function |
Over heat, sensor abnormality, EEPROM abnormallity, Sample protection(High & Low temp.) |
| Body size |
180x385x170Hmm |
| Weight |
approx.3kg |
| Power supply |
AC100V 50/60Hz, 1A |
|
|
|
|
