迷你水平電泳槽 Wide Mini Gel System MT-108 系列 |  | Code | NM0040-0010 | Classification | 電泳相關設備 | Size | | Order |  |
Print |
|
| PRODUCT DETAIL |

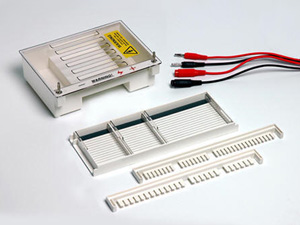

MT-108 Horizontal Gel Electrophoresis System is another choice of mini horizontal gel electrophoresis system providing a longer gel running distance compared to MJ-105 series. MT-108 is more suitable for running of bigger fragments to have a better separation. It is also designed for very fast and clear separation of DNA or RNA restriction fragments. This series is offered as a complete system, including all the necessary accessories for user to cast, and run electrophoresis. It is constructed of sturdy PC with up to 130℃ temperature capacity and it is an one molded unit, preventing cracks or leakages. This simple operated gel casting system and electrophoresis system maximize the consistency of your procedures from run to run. A safety interlock cover is designed to prevent electrical hazards during electrophoresis.

|
Features |
- Less agarose consumption
- Less running buffer consumption
- Quicker to see the experimental result
- Single molded tank
- Two tray options available
- Safety and ventilation lid
- Cast 3 pieces of agarose gel in one time
- High temperature capability 130℃
- Easy sample loading
- No direct heat impact from power supply unit
- Great indications for gel making and running
- No tapes, clamps or springs needed
|
Specification |
- Construction: PC (Polycarbonate)
- Temperature Capacity: 130℃
- Gel Dimension: 105 x 83 mm and 50 x 83 mm
- Maximum Gel Thickness: 10 mm
- Maximum Sample: 25
- Unit Dimension: W136 x L188 x H58 mm
- Buffer Volume: 400 ml
- Lid: Safety and ventilation
- Tray: Black well-visualization strip;
migration distance index line
agarose level 4 mm

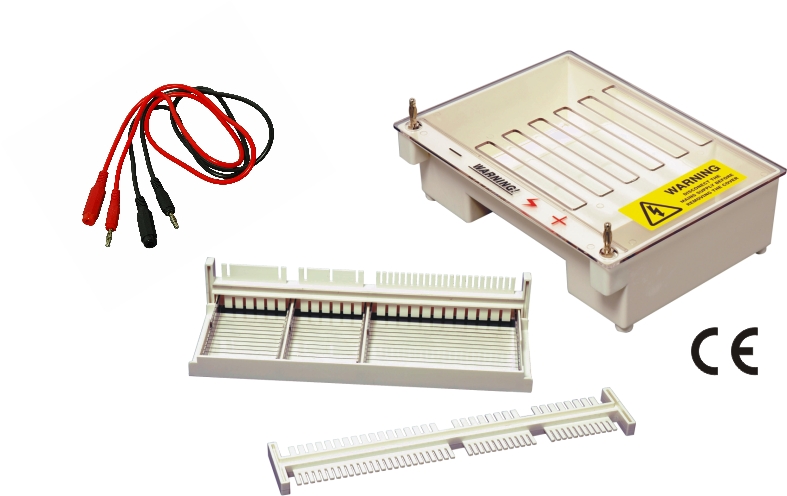

Complete with:
- 1 x Electrophoresis Tank & Cover
- 1 x Gel Maker Stand
- 1 x 105 x 83 mm Tray
- 2 x 50 x 83 mm Tray
- 1 x MJ-C01 (Double Size Comb: 8 teeth x 2 & 17 teeth Comb; 12 teeth x 2 & 25 teeth )
- 1 x MT-C03 (Double Size Comb: 23 multiple pipette teeth & Prep 1, Maker 2 & Prep 2, Maker 2; 6 teeth x 2 & 12 teeth )
- 1 x Black & Red Power Cord
Cat. No.
|
Tooth Thickness
|
Tooth Wide
|
Sample volume for a 5 mm thick gel
|
MJ-C01
|
1.0 mm
|
4.0 mm
|
20 ml
|
1.5 mm
|
2.8 mm
|
21 ml
|
|
MT-C03 |
1.0 mm
|
36 mm
|
180 ml
|
1.0 mm
|
17 mm
|
85 ml
|
1.0 mm
|
3.0 mm
|
15 ml
|
1.0 mm
|
6.0 mm
|
30 ml
|
1.0 mm
|
6.5 mm
|
32.5 ml
|
|
Ordering Information |
Cat. No. |
Description |
MT-108 |
Complete with : 1 x electrophoresis tank and cover, 1 x MT-G01, 2 x MT-T02, 1 x MT-T01, 1 x MJ-C01, 1 x MT-C03, 1 x MT-P01 |
|
|
Accessories |
|
MT-G01 |
Gel Maker Stand |
MT-T01 |
105 x 83 mm Tray |
MT-T02 |
50 x 83 mm Tray |
MJ-C01 |
Analytical comb:
8 teeth x 2 for mini gel & 17 teeth for midi gel (thick: 1.0 mm)
12 teeth x 2 for mini gel & 25 teeth for midi gel (thick: 1.5 mm) |
MT-C03 |
Analytical comb :
Prep 1, Marker 2 & Prep 2, Marker2 for mini gel & Multiple pipettet teeth: 23 teeth for midi gel (thick: 1.0mm)
6 teeth x 2 for mini gel & 12 teeth for midi gel (thick: 1.0 mm) |
MT-P01 |
Black & Red Power Cord |
MT-CASTER-C |
Caster set with combs, including 1 x MT-G01, 1 x MT-T01, 2 x MT-T02, 1 x MJ-C01, 1 x MT-C03 |

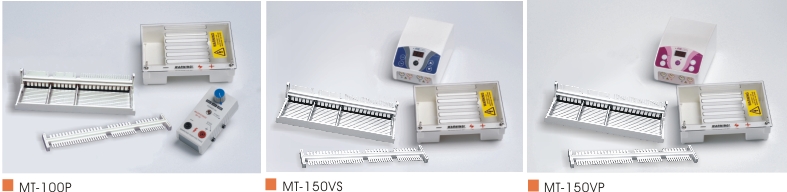

ingle Electrophoresis Package
|
MT-100P |
Package of MT-108 and MP-100 |
MT-150VS |
Package of MT-108 and Smart Minis 150 |
MT-150VP |
Package of MT-108 and Pink Minis 150 |

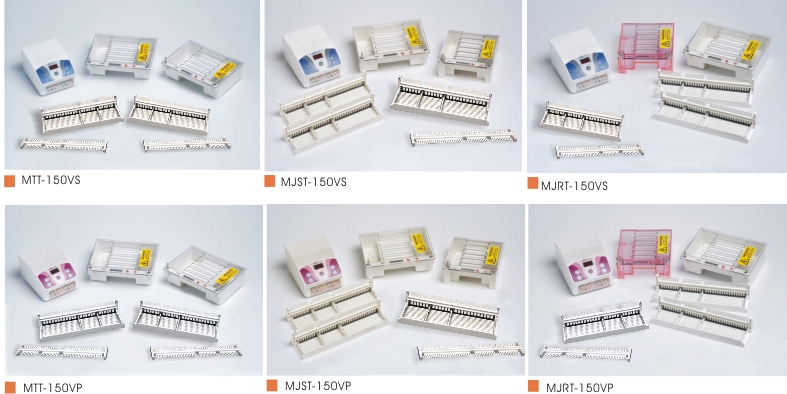

Dual Electrophoresis Package |
MTT-150VS |
Package of 2 x MT-108 and Smart Minis 150V |
MJST-150VS |
Package of MJ-105-S & MT-108 Smart Minis 150V |
MJRT-150VS |
Package of MJ-105-R & MT-108 Smart Minis 150V |
MTT-150VP |
Package of 2 x MT-108 and Pink Minis 150V |
MJST-150VP |
Package of MJ-105-S & MT-108 and Pink Minis 150V |
MJRT-150VP |
Package of MJ-105-R & MT-108 and Pink Minis 150V |

|
|
| |
