Peristaltic Pump 30-200 rpm
Code  NC0020-0200
Classification  蠕動幫浦
Size
Order 加入購物車
Print
PRODUCT DETAIL

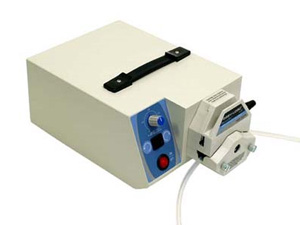

Peristaltic Pump

MU-01 is designed for the most application requirements. The applications include filtration, circulation, sampling, chemical spraying, dispensing transferring, feeding and filling. It is equipped with a popular easy-to-use peristaltic pump, which accepts several different silicon tubing sizes for a wide range of flow rate. The design of reversible flow control delivers better convenience and flexibility to the user.



Features
  • Compact size
  • Easy load pump header
  • Wide applications
  • Reversible for purging



Specification
  • Rpm: 30-200rpm
  • Motor Size: 1/20HP
  • Number of Rollers: 3
  • Maximum Pump Speed: 200rpm
  • Variable Flow Rate: 0.6 ~760ml/min
  • Operating Temperature: Ambient to 40℃
  • Unit Material: Printed metal
  • Unit Dimension: 200 x 340 x 130mm (W x L x H)
  • Rated Voltages: 110V or 220V
  • Weight: approx. 3.3kg

Sillcon Tube and Typical Rate

Silicon Tubing
Cat. No.

Tube I.D.
Size('')

10 rpm
(ml/Rev.)

200 rpm
(ml/Rev.)

MU-S13

1/32

0.6

12

MU-S14

1/16

2.1

42

MU-S16

1/8

8

160

MU-S25

3/16

17

340

MU-S17

1/4

28

560

MU-S18

3/8

38

760



Ordering Information

Cat. No.

Description

MU-01-110/220

MS Peristaltic Pump

Accessories

MU-S13

Silicon tube I.D. 1/32''25ft

MU-S14

Silicon tube I.D. 1/16''25ft

MU-S16

Silicon tube I.D. 1/8''25ft

MU-S25

Silicon tube I.D.3/16''25ft

MU-S17

Silicon tube I.D.1/4''25ft

MU-S18

Silicon tube I.D.3/8''25ft
